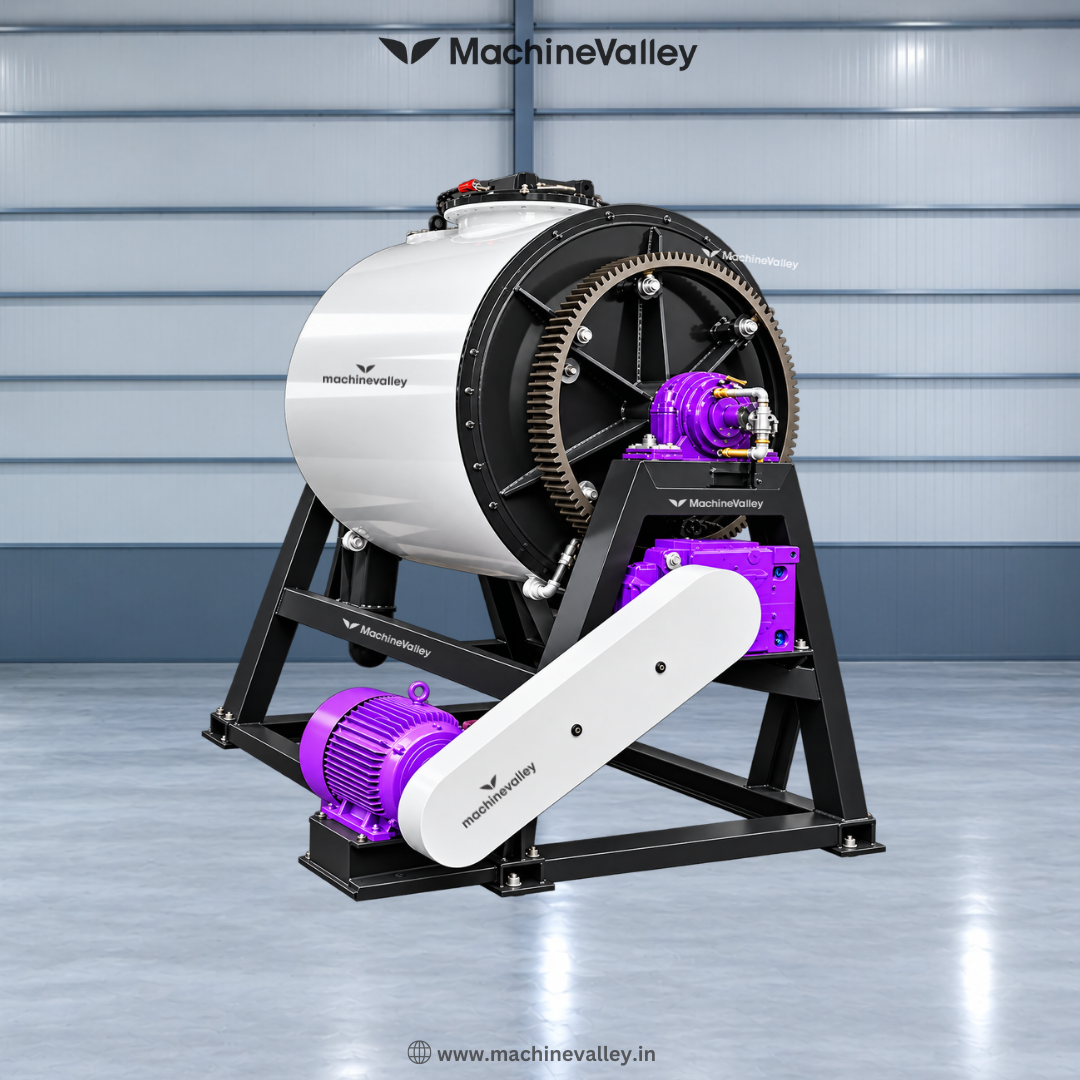

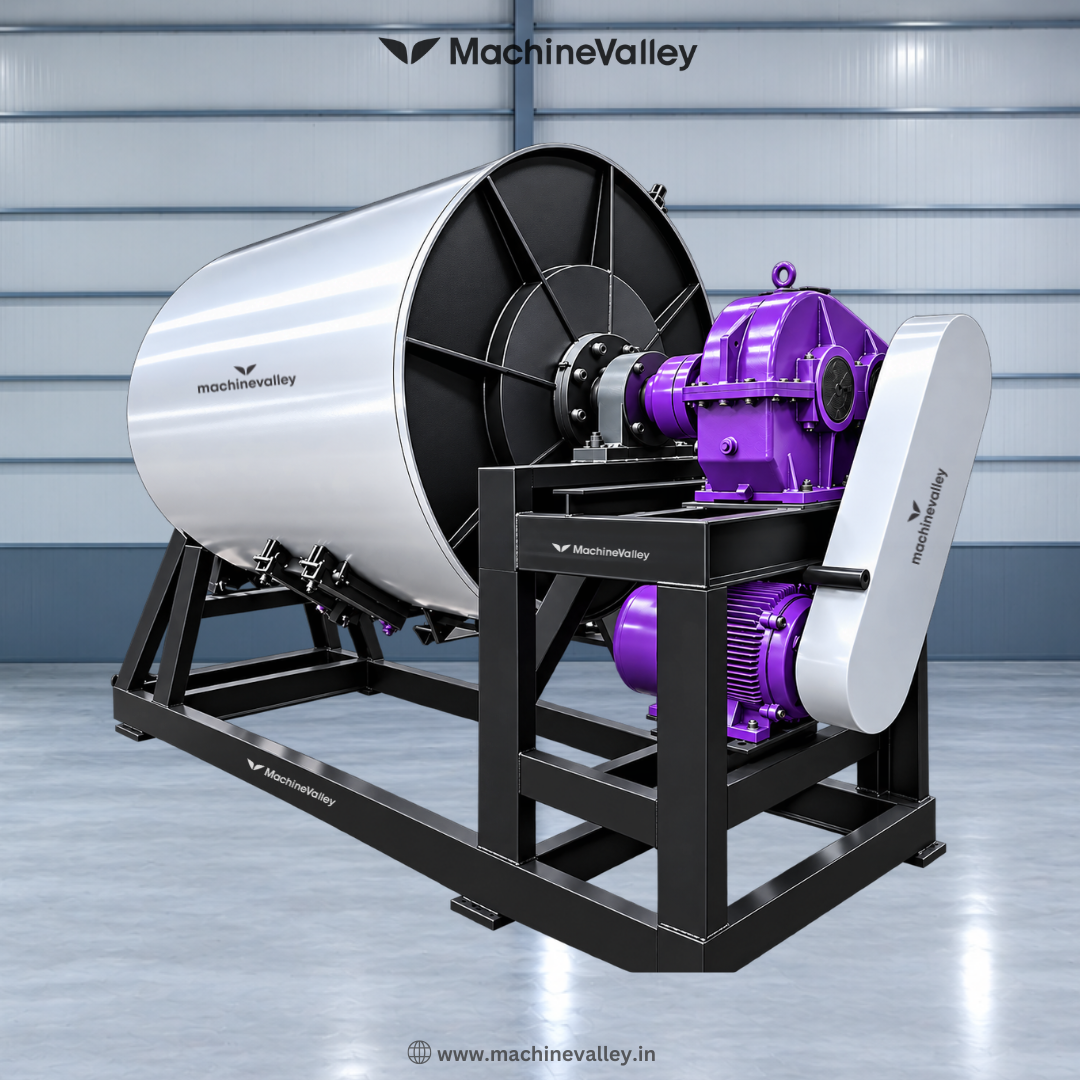

Ball Mill is one of the most widely used machines in industrial powder processing, purpose-built for both dry grinding and wet grinding operations. The rotating shell is fabricated from mild steel, with ends either welded or bolted for structural strength. Shafts are welded to the shell and connected to Plummer block bearings, allowing the entire shell assembly to rotate at a controlled RPM, grinding the material inside over extended run times to achieve the desired fineness commonly used for pigments and similar products that require prolonged grinding cycles.

For applications demanding zero contamination, the Ball mill shell can be internally lined with steatite or alumina, paired with grinding media (balls) made from steatite, alumina, or steel depending on the product being processed. Discharge is handled through a perforated manhole cover connected to a ball valve, allowing controlled, mess-free unloading of the finished product.

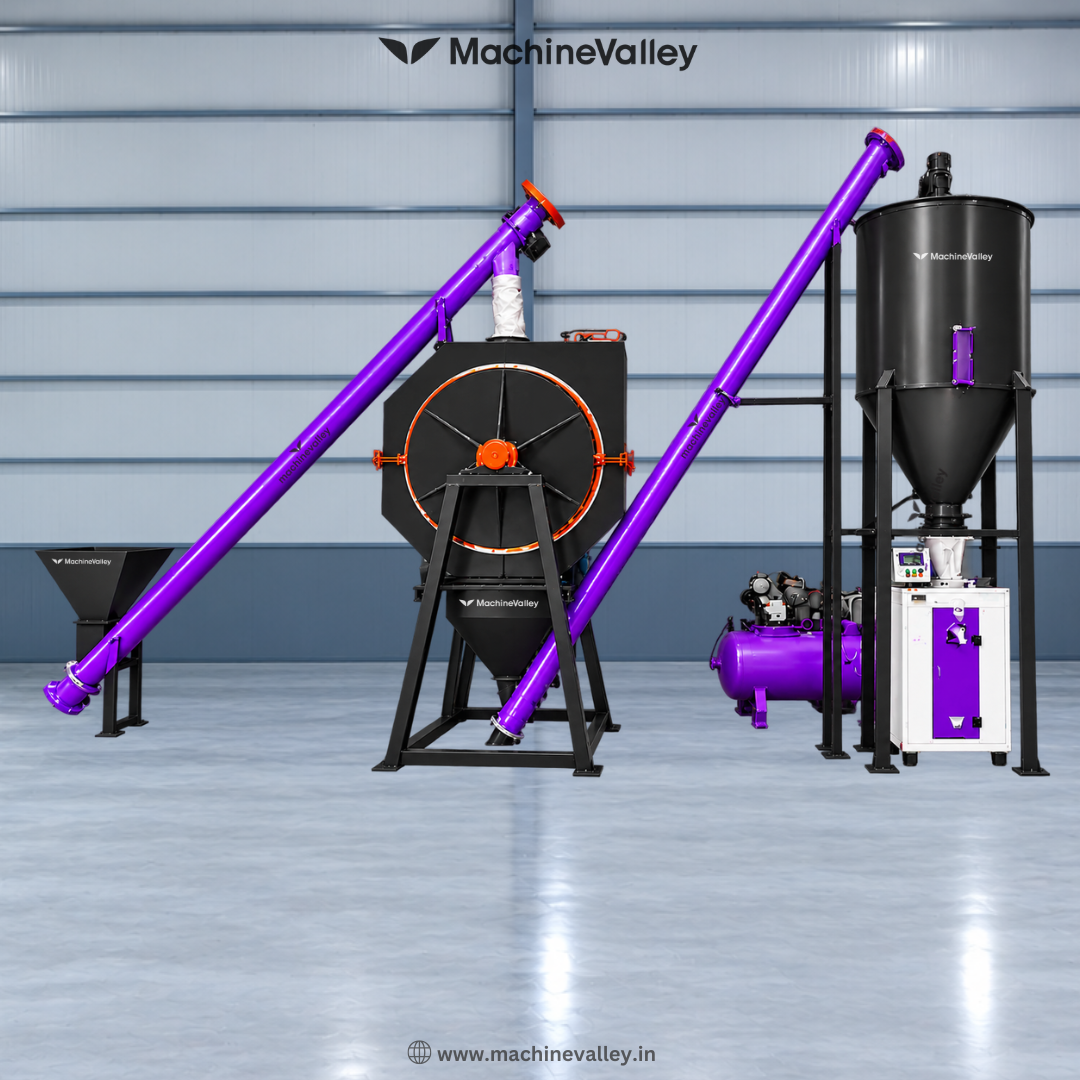

MachineValley manufactures Ball Mills across a range of capacities from compact units to heavy-duty machines, each configurable with gear-and-pinion or belt-driven mechanisms, dusting covers, screw conveyors for feeding/discharge, and lining options to match the application.
