This high-speed mixing Kettle/Reactor is a Stainless Steel Vacuum Dissolver, built for emulsion paints, inks, pigments, and other materials up to 8500 cps. A heating/cooling jacket and VFD-driven dispersion come standard, with bridge or flange tank mounting for batch sizes from 500L to 8000L.
| Type1 | Drive Power (kW) | Speed (rpm) | Vessel Dia (mm) | Batch Size | Usable Volume (max) |
|---|---|---|---|---|---|
| MVH500 | 11 | 0-1450 | 800 | 500kg | 400L |

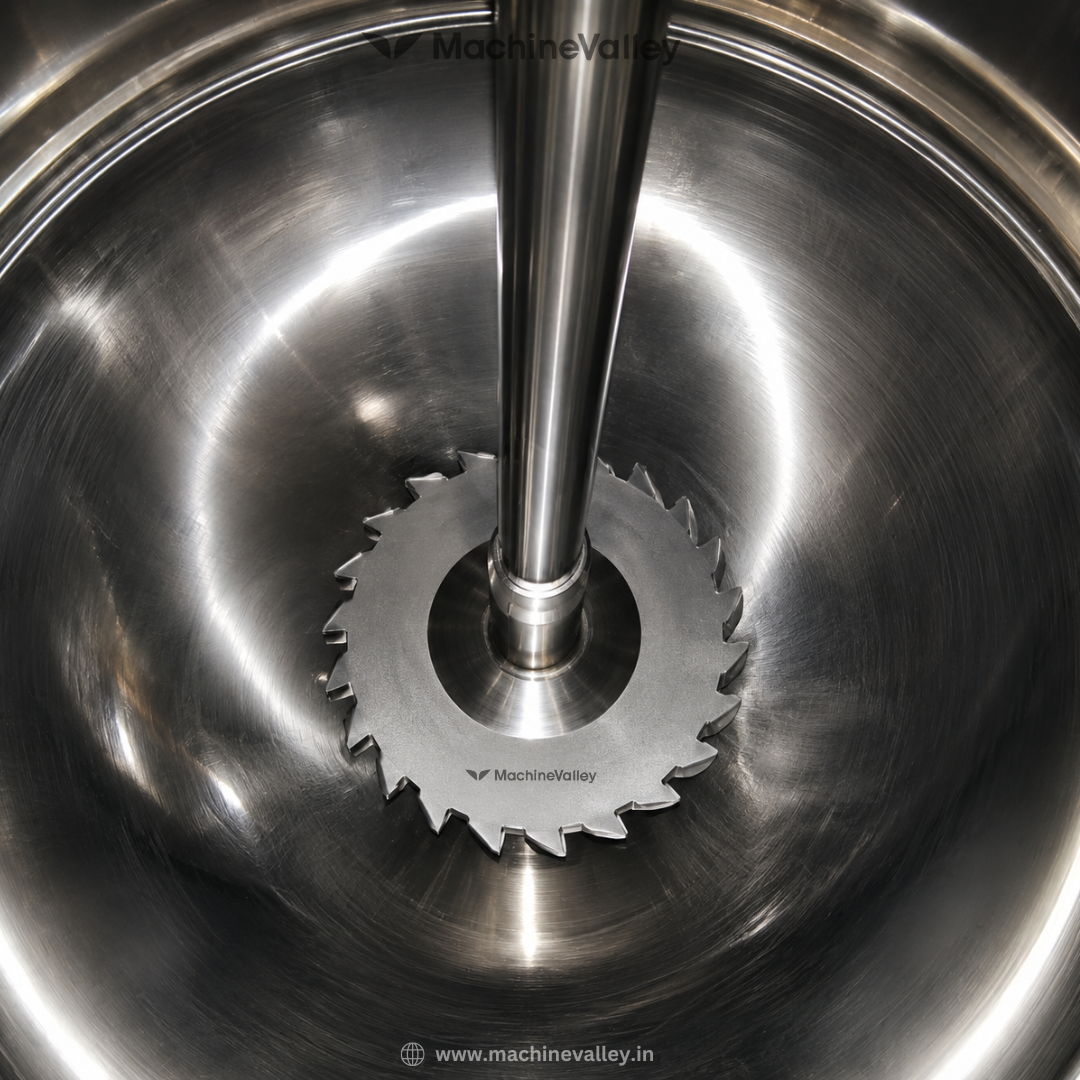

| MVH1000 | 15 | 0-1450 | 0-1450 | 1000kg | 800L |

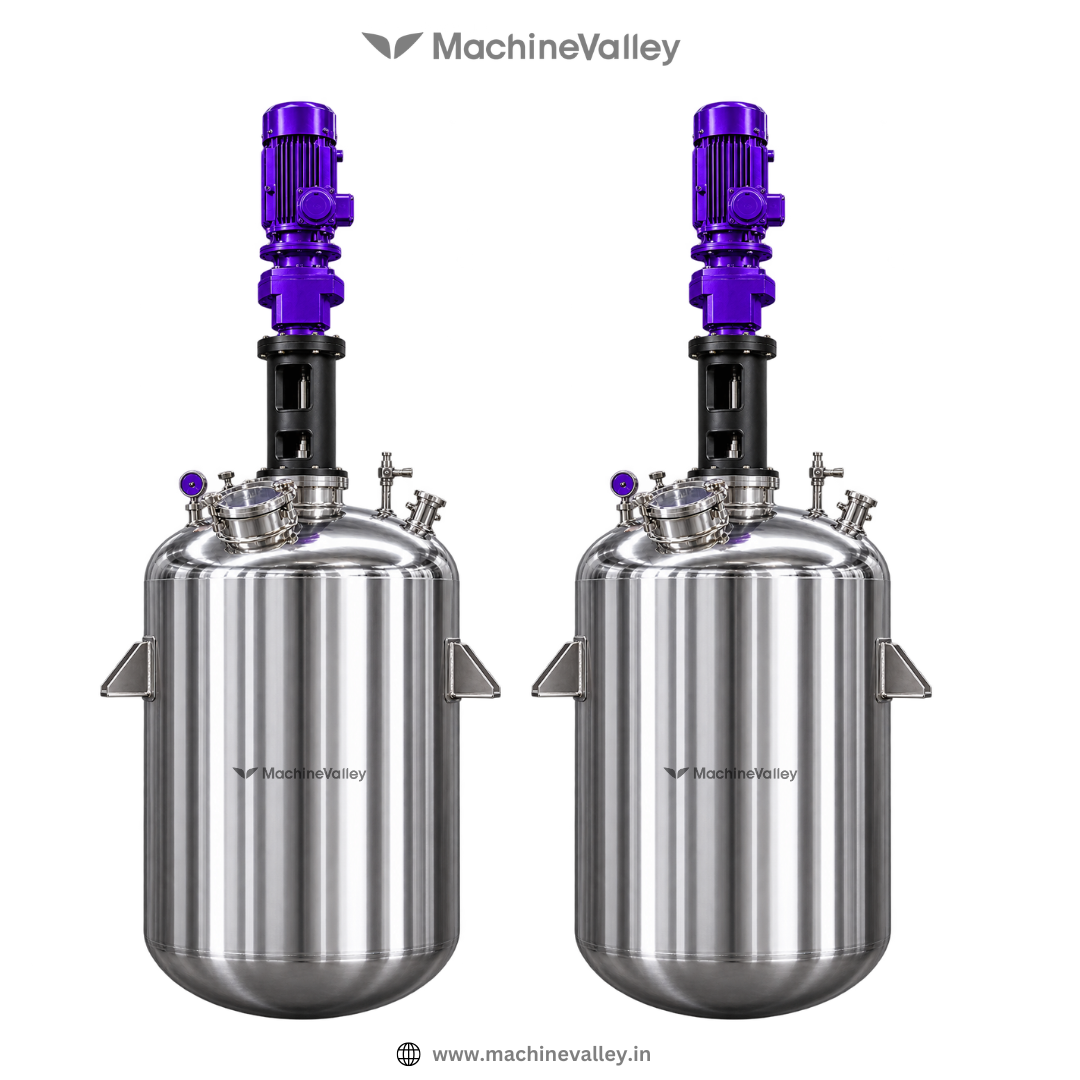

| MVH2000 | 30 | 0-1450 | 1400 | 2000kg | 1600L |
| MVH3000 | 37 | 0-1450 | 1500 | 3000kg | 2300L |
| MVH4000 | 45 | 0-1450 | 1600 | 4000kg | 3100L |
| MVH5000 | 55 | 0-1450 | 1800 | 5000kg | 3900L |
| MVH6000 | 75 | 0-1450 | 1900 | 6000kg | 4700L |
| MVH8000 | 90 | 0-1000 | 2000 | 8000kg | 6200L |
| MVH10000 | 110 | 0-1000 | 2200 | 10000kg | 7800L |
500 Liter TSD High-Speed Reactor
Drive power 11kW, speed 0–1450rpm, vessel diameter 800mm. Handles batch sizes up to 500kg with a usable volume of 400L. Suited to smaller production runs and lab-to-plant scale-up.
1000 Liter TSD High-Speed Reactor
Drive power 15kW, speed 0–1450rpm, vessel diameter 1000mm. Handles batch sizes up to 1000kg with a usable volume of 800L. Fits mid-size production lines needing more throughput than the 500L option.
2000 Liter TSD High-Speed Reactor
Drive power 30kW, speed 0–1450rpm, vessel diameter 1400mm. Handles batch sizes up to 2000kg with a usable volume of 1600L. Suited for higher-volume paint, ink, or pigment production.
3000 Liter TSD High-Speed Reactor
Drive power 37kW, speed 0–1450rpm, vessel diameter 1500mm. Handles batch sizes up to 3000kg with a usable volume of 2300L. Built for continuous, high-output production runs.
