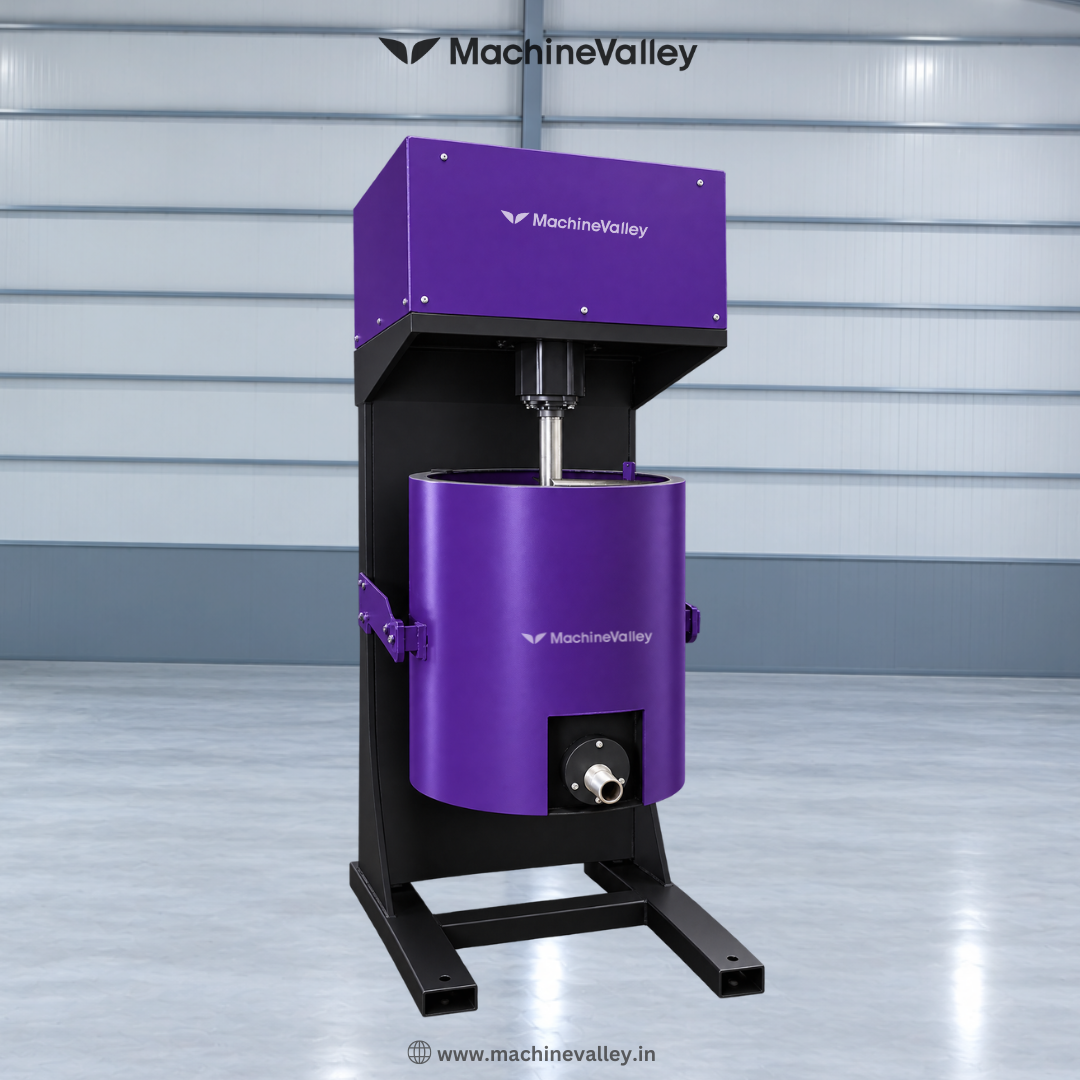

Batch Type Bead Mill handles fine particle size reduction and dispersion for paints, inks, pigments, coatings, and specialty chemicals, one batch at a time, with tight control over particle size and consistency.
| DETAILS | BM-100 | BM-200 | BM-300 | BM-500 | BM-1000 |
|---|---|---|---|---|---|
| WORKING CAPACITY (LTR) | 100 | 200 | 600 LTR | 500 LTR | 1000 |
| SS SHELL THICKNESS | 4MM | 6MM | 6MM | 6MM | 8MM |
| SHAFT DIAMETER (MM) | 55MM | 60MM | 65MM | 70MM | 70MM |
| MOTOR POWER (HP) | 7.5HP | 10HP | 15HP | 20HP | 25HP |
| MOTOR RPM | 0~1440 | 0~1440 | 0~1440 | 0~1440 | 0~1440 |
| MS JACKET | 4MM | 6MM | 6MM | 6MM | 8MM |
| GEAR TYPE | GEAR DRIVEN | GEAR DRIVEN | GEAR DRIVEN | GEAR DRIVEN | GEAR DRIVEN |
| BLADE TYPE | DISK TYPE | DISK TYPE | DISK TYPE | DISK TYPE | DISK TYPE |
| OUTLET VALVE (INCH) | 1.5 | 2 | 2 | 2 | 2 |
100-Liter Bead Mill
Compact Bead Mill for small-batch grinding using fine grinding media at high shear. Ideal for R&D labs and pilot-scale trials needing precise particle control. Delivers fine, uniform dispersion with quick changeover and low power draw.
200-Liter Bead Mill
Mid-capacity Bead Mill for scaling production without losing grind fineness. Handles higher viscosity and pigment loads than the 100L unit while holding tight particle-size distribution. Suited for regular production runs.

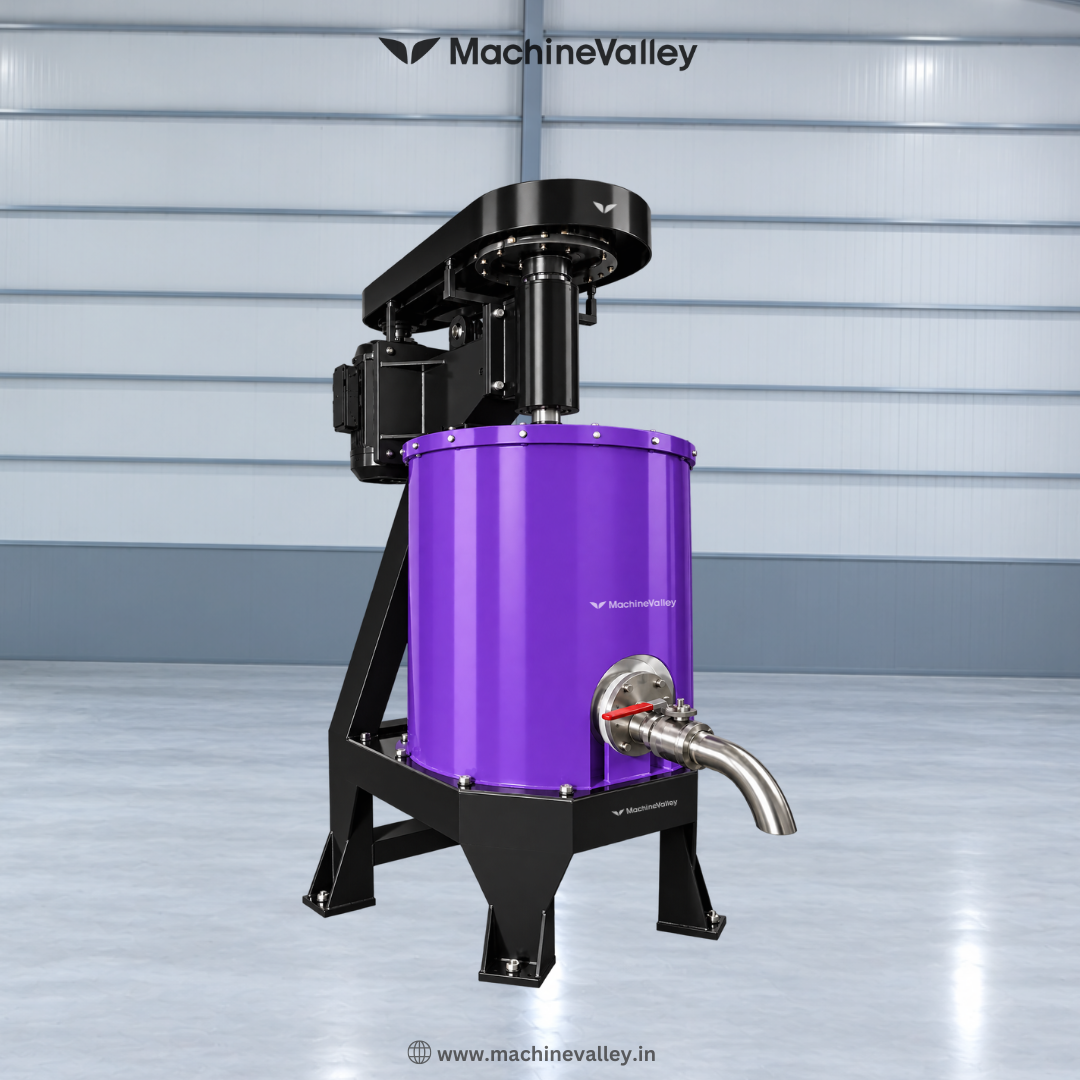

500-Liter Bead Mill
High-output Bead Mill for full-scale continuous operations. Larger grinding chamber and media volume support sustained batches with consistent fineness. Reinforced build and higher-capacity drive handle demanding dispersion loads.

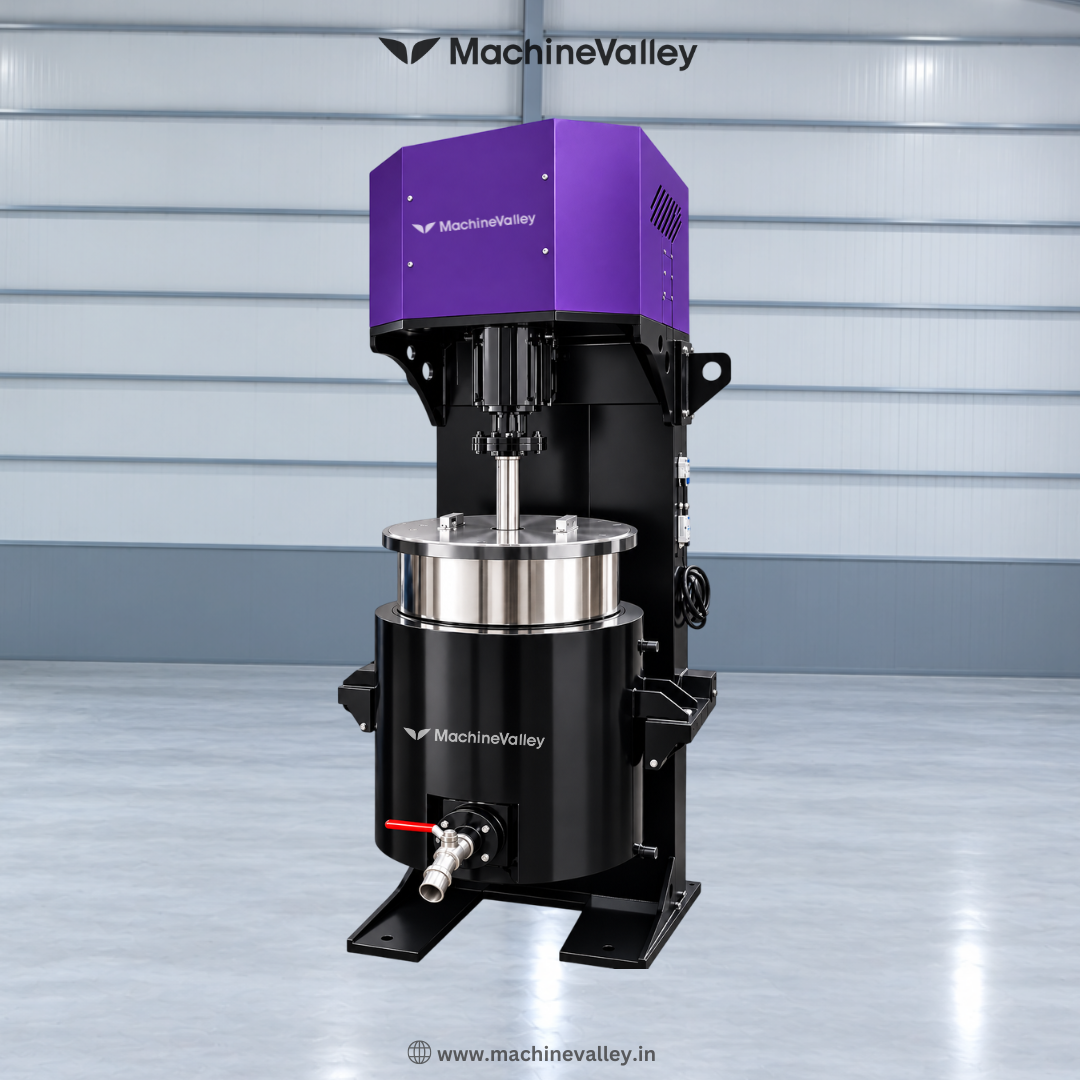

1000-Liter Bead Mill
Heavy-duty Bead Mill for large-scale manufacturing needing maximum throughput. Robust frame and high-torque drive built for round-the-clock operation. Maintains fine, uniform dispersion at scale with low maintenance downtime.
A batch mill processes one full load at a time in a closed chamber, so you can dial in particle size and dispersion quality before scaling up. A continuous mill runs material through in a steady stream, better suited to high-volume, unchanging formulations.
100L, 200L, 500L, and 1000L, covering everything from R&D and pilot trials up to full-scale production runs.
It handles paints, coatings, printing inks, pigments and dyes, cosmetics, agrochemicals, pharmaceuticals, and specialty chemicals, anything needing fine, uniform particle dispersion in a liquid base.
The chamber is designed for fast changeover, so switching formulations or colors between batches doesn't require extended downtime.
Yes. Bead size and process speed are both adjustable, so the same unit can be tuned for different viscosities, pigment loads, and target fineness across formulations.
