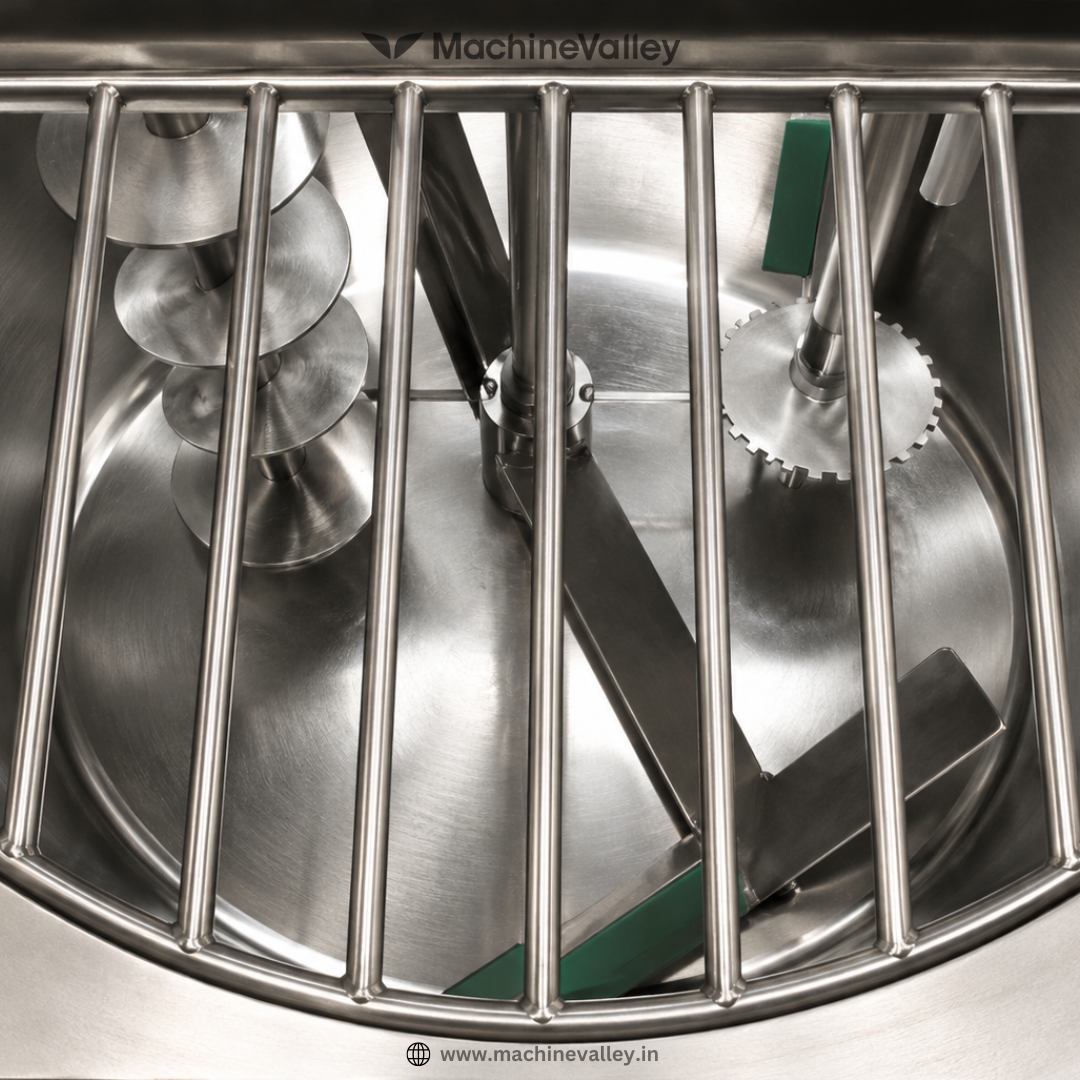

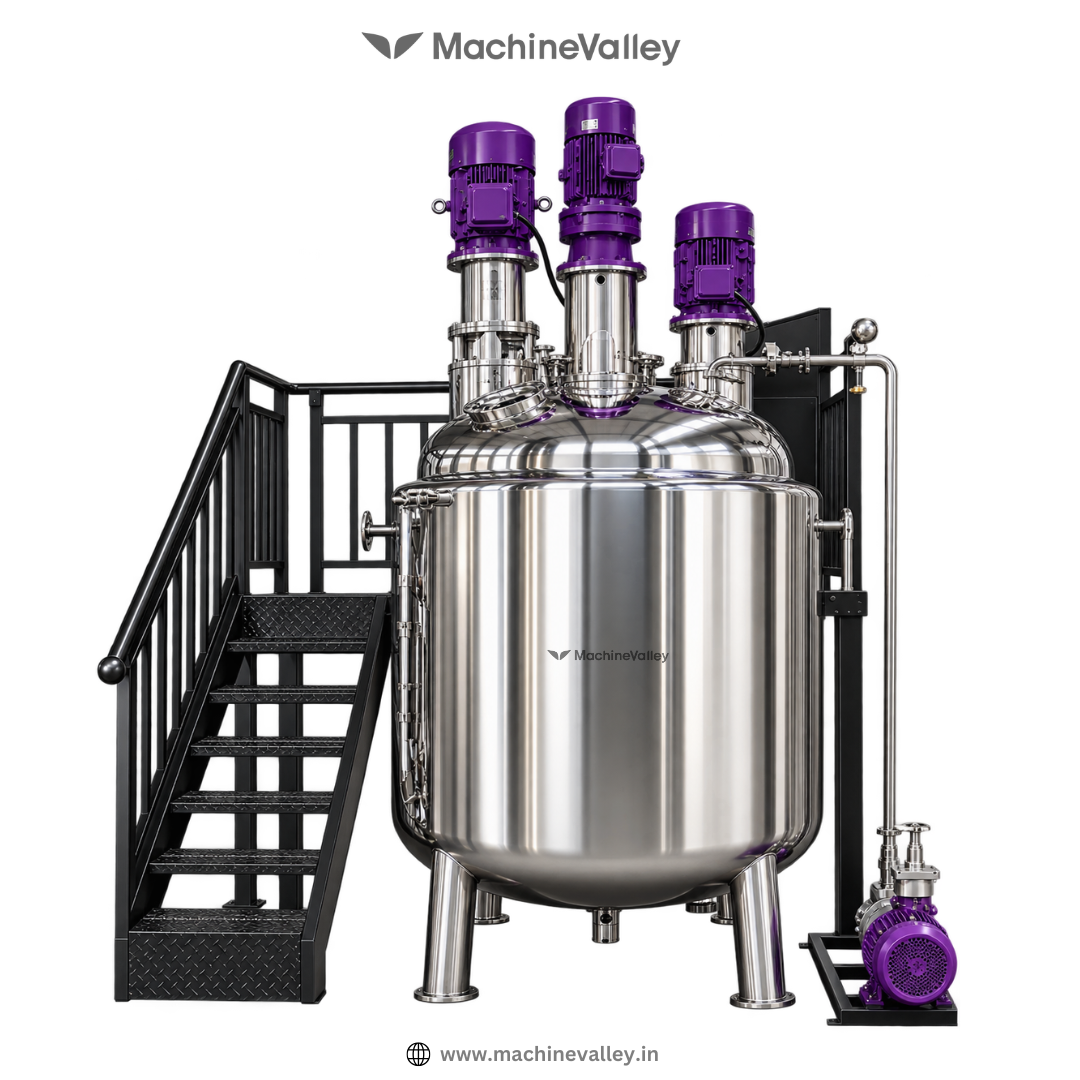

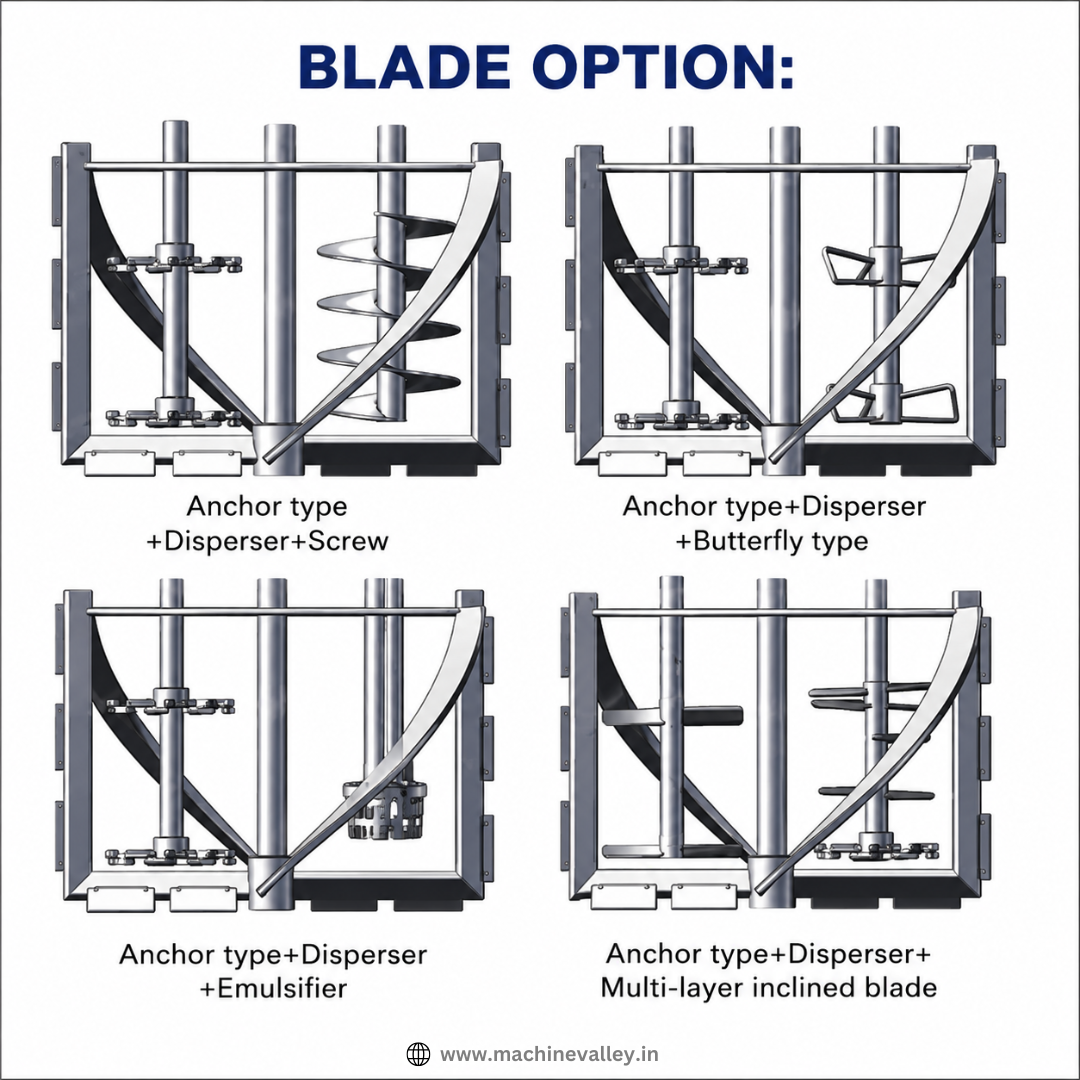

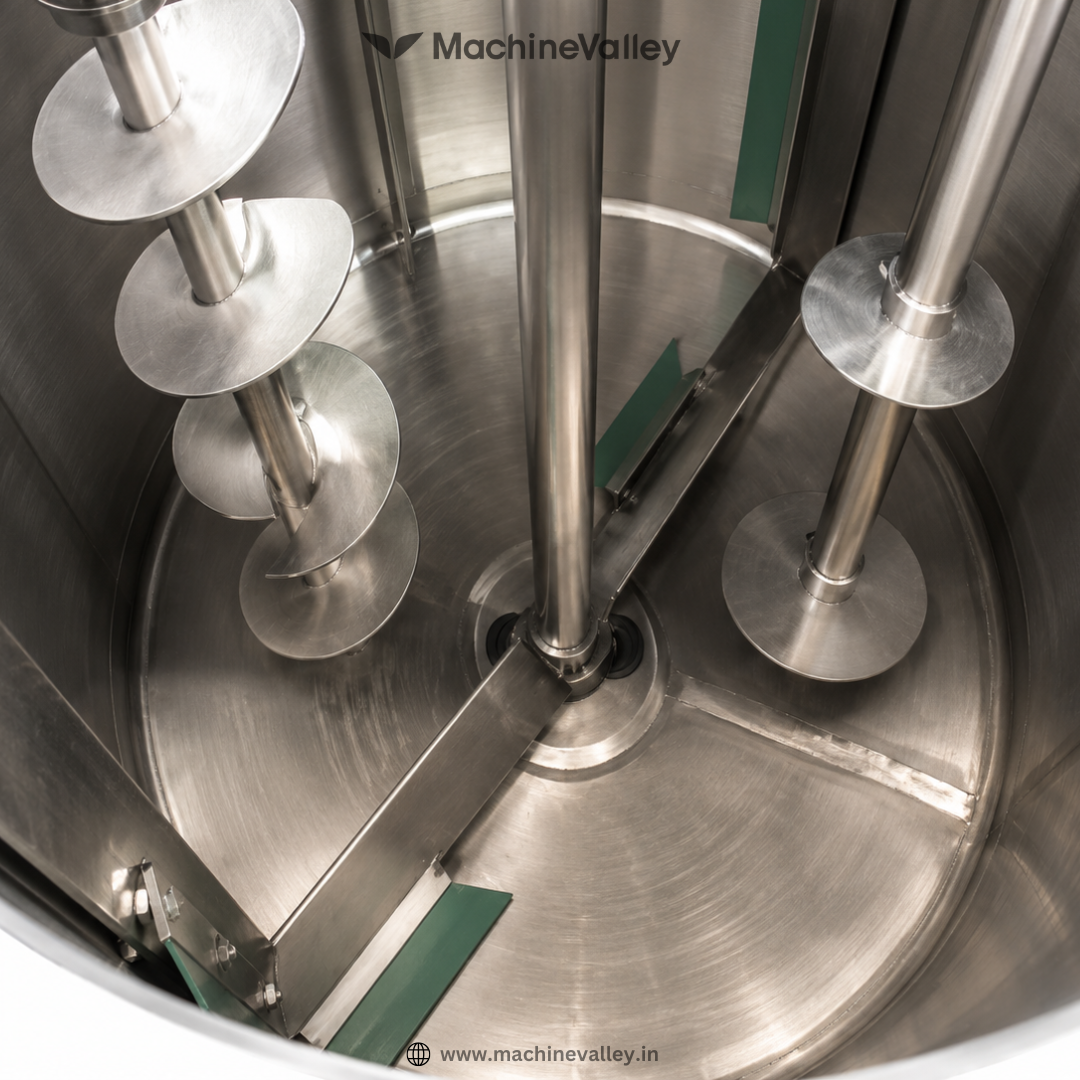

MachineValley Multi-Functional Mixing Kettle is a triple-shaft mixing system combining an anchor scraper, high-speed disperser, and a configurable third blade (screw, butterfly, emulsifier, or multi-layer inclined blade) in one vessel. Purpose-built for medium-to-high viscosity products, it's the ideal solution for adhesives, sealants, printing paste, inks, pigments, putty, and coatings on SC production lines.
| Machine Model11 | Dissolver (kW) | Dissolver Speed (rpm) | Helix (kW) | Helix Speed (rpm) | Scraper (kW) | Scraper Speed (rpm) | Usable Volume (max) |
|---|---|---|---|---|---|---|---|
| MVTS1000 | 22 | 0-1450 | 4 | 0-180 | 5.5 | 22 | 800L |
| MVTS2000 | 37 | 0-1450 | 5.5 | 0-180 | 7.5 | 22 | 1600L |
| MVTS3000 | 45 | 0-1450 | 7.5 | 0-170 | 11 | 22 | 2300L |
| MVTS5000 | 55 | 0-1450 | 11 | 0-170 | 15 | 18 | 4000L |
| MVTS6000 | 75 | 0-960 | 15 | 0-120 | 18.5 | 18 | 4600L |
| MVTS8000 | 90 | 0-960 | 18.5 | 0-120 | 22 | 17 | 6200L |
| MVTS10000 | 110 | 0-960 | 22 | 0-100 | 30 | 17 | 7800L |
| MVTS15000 | 132 | 0-960 | 30 | 0-100 | 37 | 17 | 12000L |
500 Liter Multi-Shaft Reactor
Built for small-batch and pilot-scale production. It's the ideal starting point for manufacturers testing new formulations of adhesives, inks, or coatings before committing to full-scale runs, combining the same anchor-scraper, disperser, and configurable third-blade design in a space-saving footprint.
1000 Liter Multi-Shaft Reactor
MachineValley 1000 brings a full three-motor mixing anchor scraper, high-speed disperser, and configurable third shaft to small production batches. Suited for manufacturers moving beyond pilot trials into their first dedicated production line for adhesives, sealants, and printing paste.
2000 Liter Multi-Shaft Reactor
Built for growing production lines, the MachineValley 2000 handles larger batch volumes without sacrificing mixing precision. Its anchor scraper and disperser combination keeps inks, pigments, and coatings uniformly blended, batch after batch, as output demands increase.
5000 Liter Multi-Shaft Reactor
Designed for continuous industrial output, the MachineValley 5000 is the go-to choice for manufacturers running large-scale batches of sealants, putty, and coatings.
