This Low-Speed Mixing Kettle/Reactor from MachineValley is a jacketed reactor dissolver for viscous liquids up to 8500 cps. It comes with a vacuum design, inverter-controlled speed, and a heating/cooling jacket, and it's built for steady batch mixing in paint, ink, and pigment production.
| Machine Type | Drive Power (kW) | Speed (rpm) | Vessel Dia (mm) | Batch Size | Usable Volume (max.) |
|---|---|---|---|---|---|
| MVS500 | 1.1 | 112 | 800 | 500kg | 400L |
| MVS1000 | 2.2 | 112 | 1000 | 1000kg | 800L |
| MVS2000 | 4 | 112 | 1400 | 2000kg | 1600L |
| MVS3000 | 5.5 | 88 | 1500 | 3000kg | 2300L |
| MVS5000 | 11 | 88 | 1800 | 5000kg | 3900L |
| MVS6000 | 11 | 88 | 1900 | 6000kg | 4700L |
| MVS8000 | 15 | 88 | 2000 | 8000kg | 6200L |
| MVS10000 | 18.5 | 65 | 2200 | 10000kg | 7800L |
500 Liter Low-Speed Mixing Reactor
MachineValley's 500L Low-Speed Mixing Kettle runs a 1.1kW drive at 112rpm with an 800mm vessel. Handles up to 500kg batches, ideal for pilot runs and low-volume paint or pigment production.

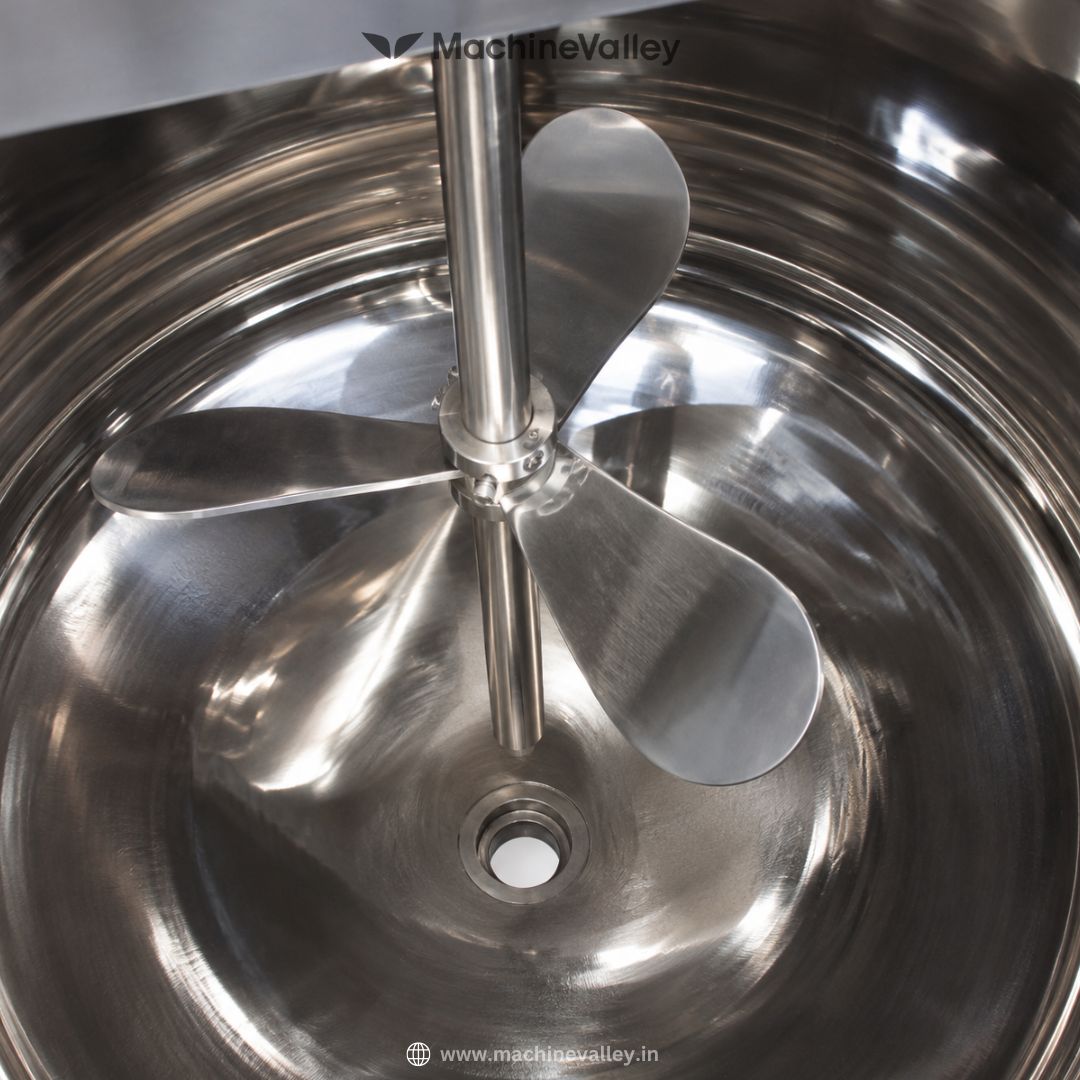

1000 Liter Low-Speed Mixing Reactor
1000L variant uses a 2.2kW motor at 112rpm with a 1000mm vessel diameter. Handles batch sizes up to 1000kg, suited for small manufacturers scaling from pilot to regular production runs.

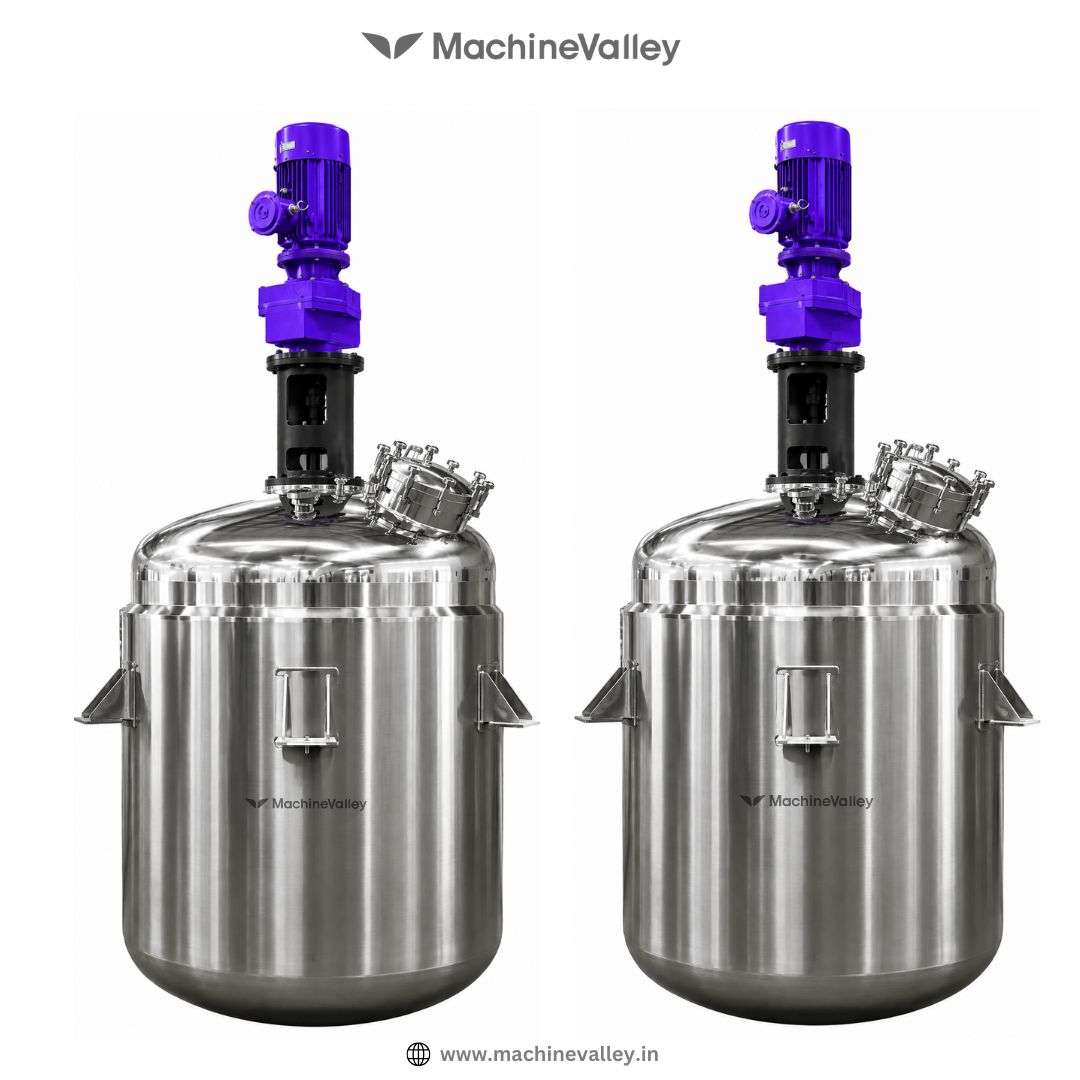

2000 Liter Low-Speed Mixing Reactor
This 2000L model runs a 4kW drive at 112rpm with a 1400mm vessel diameter. Handles up to 2000kg per batch, fitting mid-scale manufacturers needing consistent daily production output.

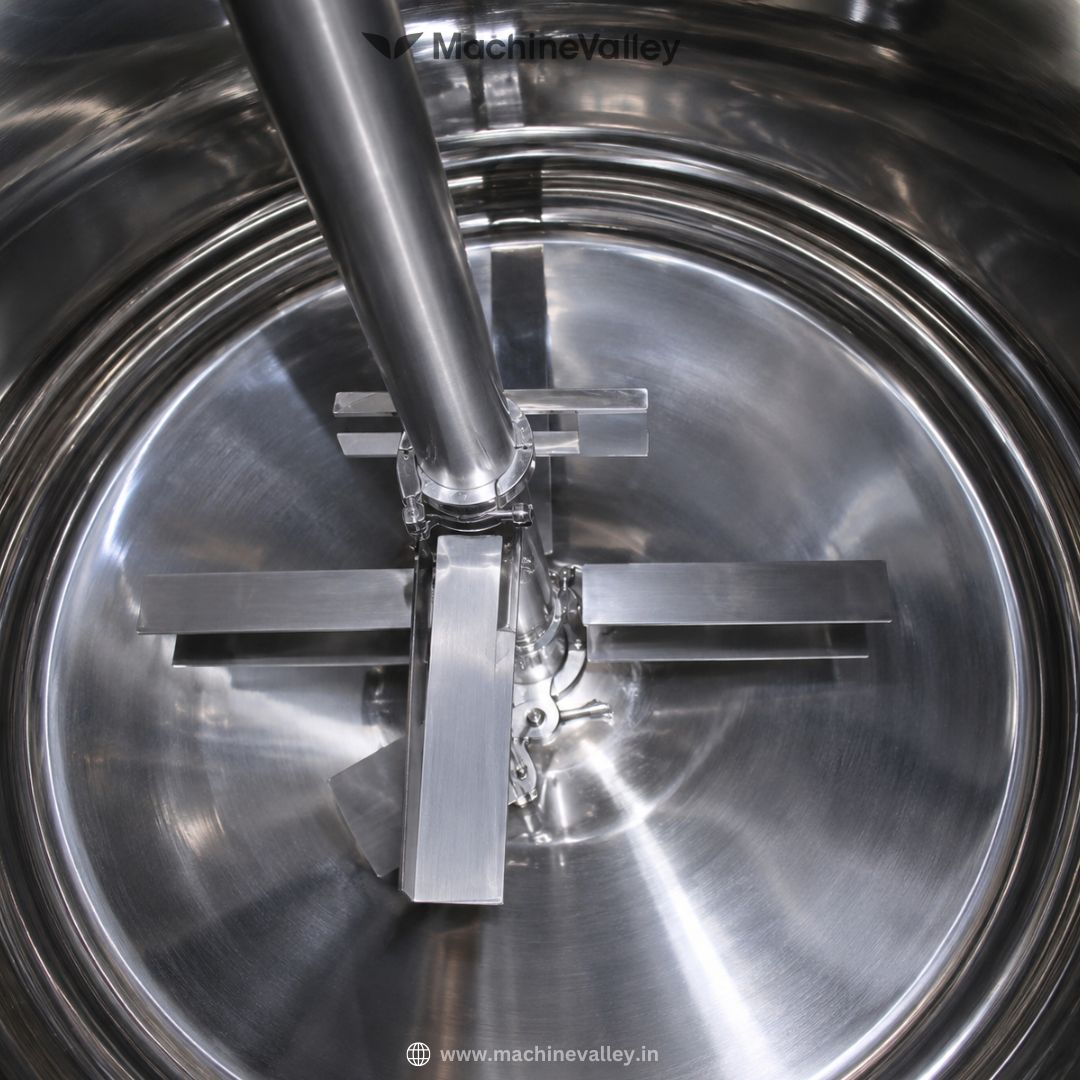

3000 Liter Low-Speed Mixing Reactor
3000L model runs a 5.5kW motor at 88rpm with a 1500mm vessel diameter. Handles up to 3000kg batches, suited for higher-viscosity, industrial-scale paint and coating production.
