Double-Shaft Mixing Kettle/Reactor

Double-Shaft Mixing Reactor/Kettle

Highlights

Dual-Shaft Dissolver & Scraper Agitation System
Handles Mid-Viscosity Materials 10,000-50,000 cps
Scales from 1000L - 12,000L Capacity Range

ATEX, CE, and ISO Certified Equipment Design
Inverter-driven Speed Control on both Shafts
Bridge or Flange Tank Mounting Configurations

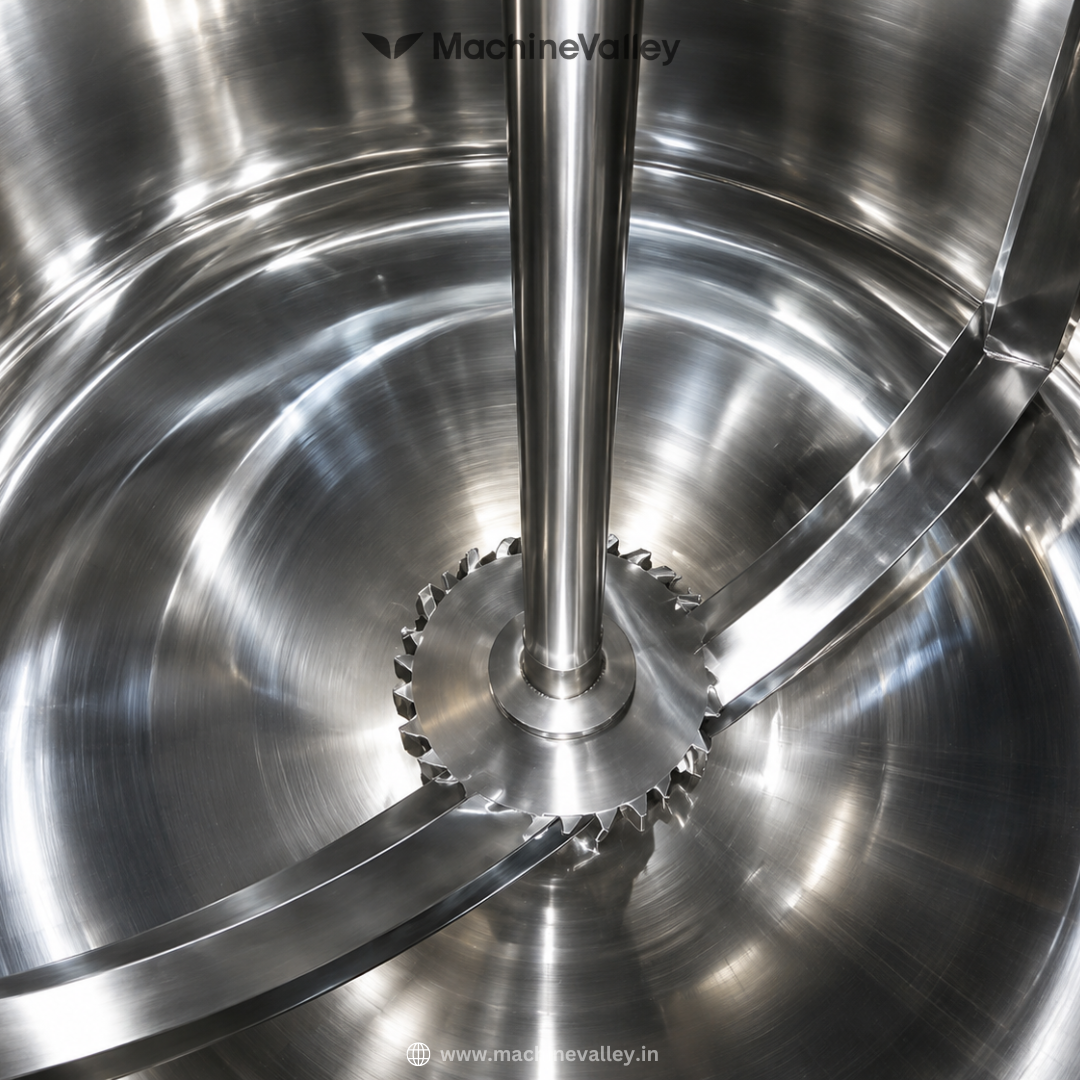

MachineValley's Double Shaft Mixing Reactor/Kettle runs two shafts in one tank: a dissolver disc up to 1440 rpm for breaking down pigment and agglomerates, and a slower scraper that sweeps the wall and base the whole time it's running. On bigger batches especially, that second shaft is the difference between an even mix and a ring of unmixed material stuck to the sides.

Major Benefits

Scraper Stops Material Sticking to Wall
Dual-Shaft cuts total Mixing Time
One Machine, Pilot to full Production
Even Heat Transfer via Jacket + Scraper
Less manual Cleaning between Batches

Major Feature

Dissolver + Scraper Dual-Shaft Agitation
Inverter speed control, both shafts
Jacketed tank for Heating or Cooling
Bridge or Flange Tank Mounting for Reactor
Robust Steel Construction in SS304/SS316

Technical Information

Machine Type	Dissolver (kW)	Dissolver Speed (rpm)	Scraper (kW)	Scraper Speed (rpm)	Batch Size	Usable Volume
MVD1000	22	0-1450	5.5	22	1000kg	800L
MVD2000	37	0-1450	7.5	22	2000kg	1600L
MVD3000	45	0-1450	11	22	3000kg	2300L
MVD5000	55	0-1450	15	18	5000kg	4000L
MVD6000	75	0-960	18.5	18	6000kg	4600L
MVD8000	90	0-960	22	17	8000kg	6200L
MVD10000	110	0-960	30	17	10000kg	7800L
MVD15000	132	0-960	37	17	15000kg	12000L

Machine Options

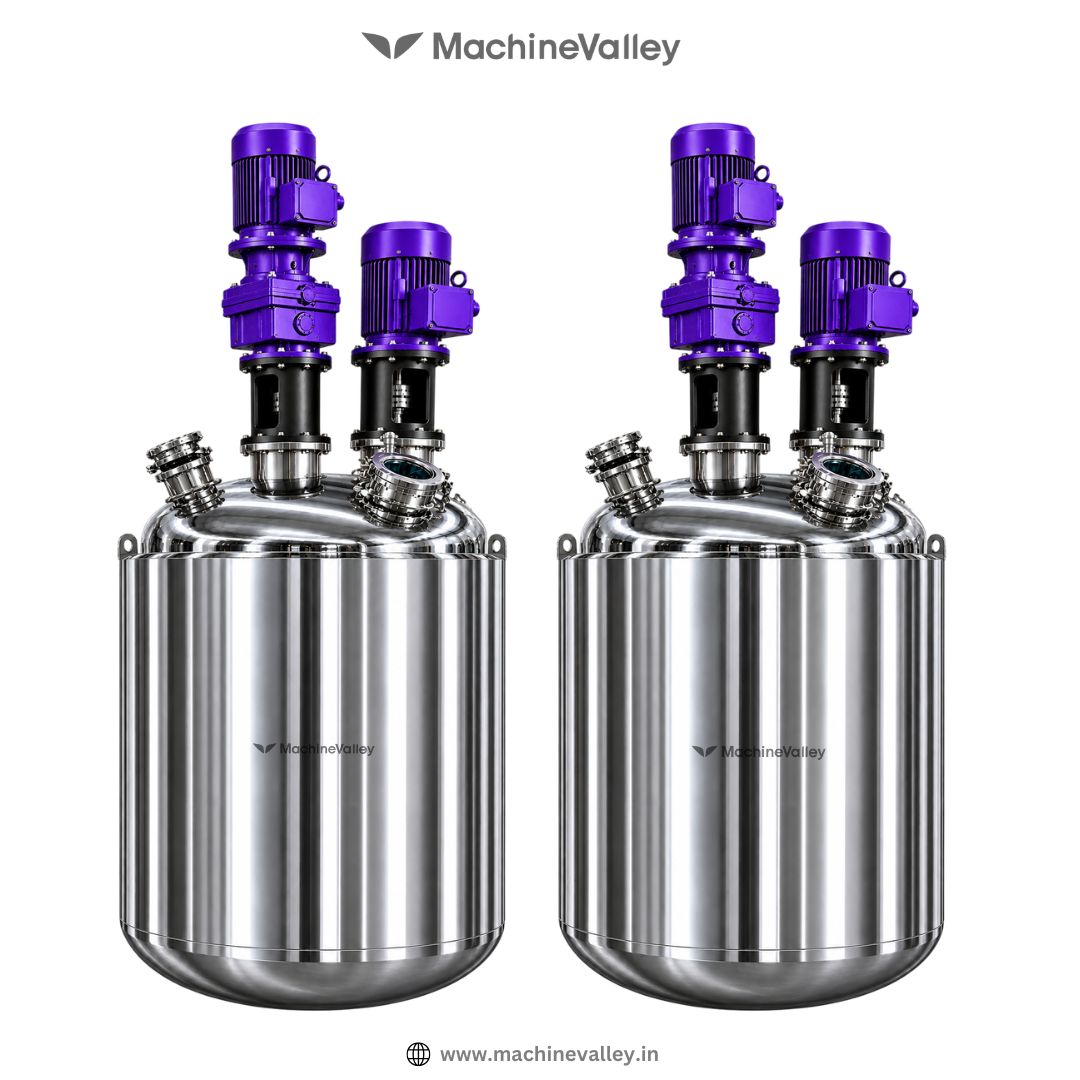

MVD500

500 Litre Double Shaft Mixing Kettle

Compact configuration built for small-batch and pilot production runs. Pairs a dissolver disc with a scraper shaft in a jacketed vessel, sized for labs, R&D trials, and low-volume production of paints, inks, and coatings before scaling up.

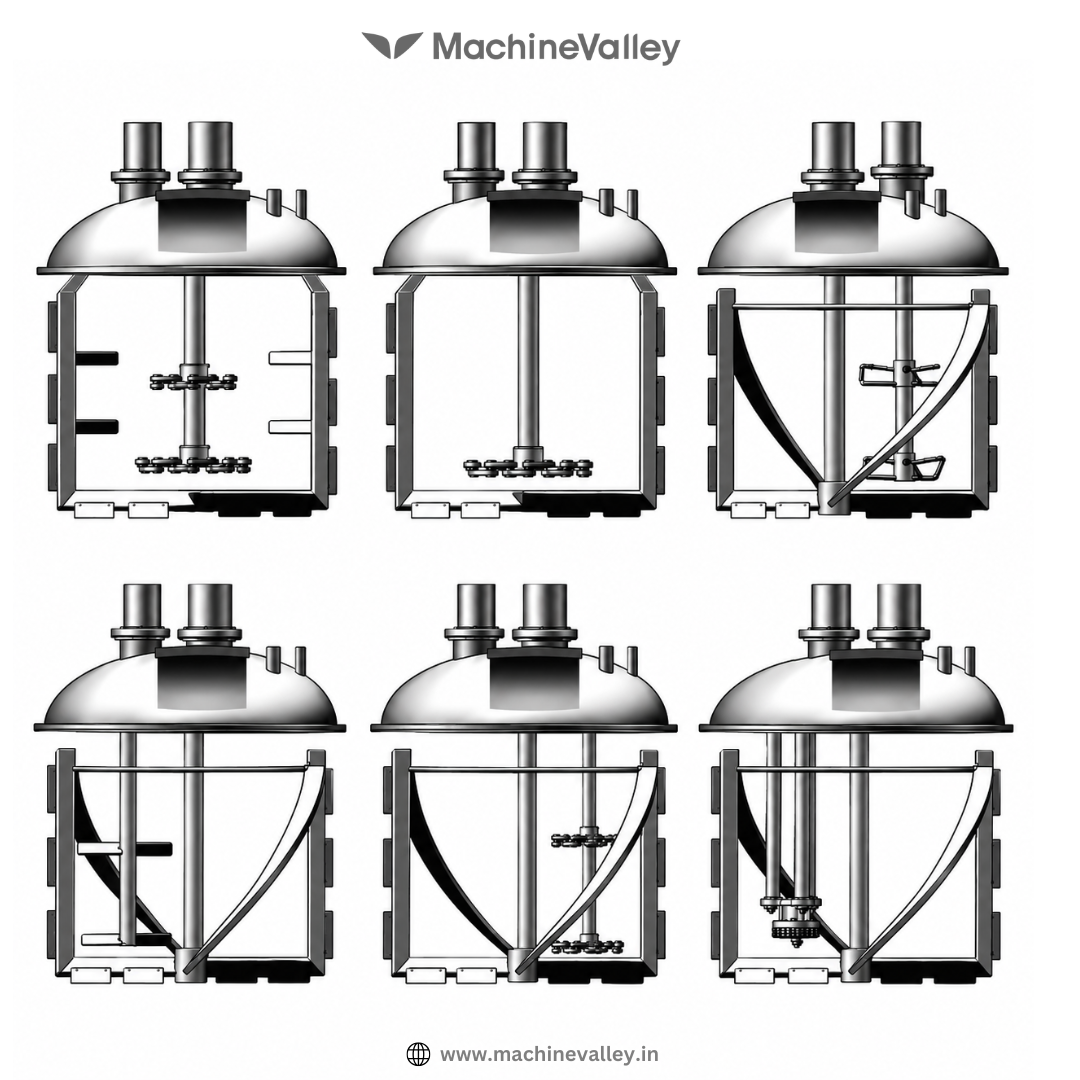

MVD1000

1000 Litre Double Shaft Mixing Kettle

This reactor uses dissolver and scraper shafts working together in a single tank, suited for small-to-mid production batches. Common entry point for facilities moving from lab-scale to regular production runs.

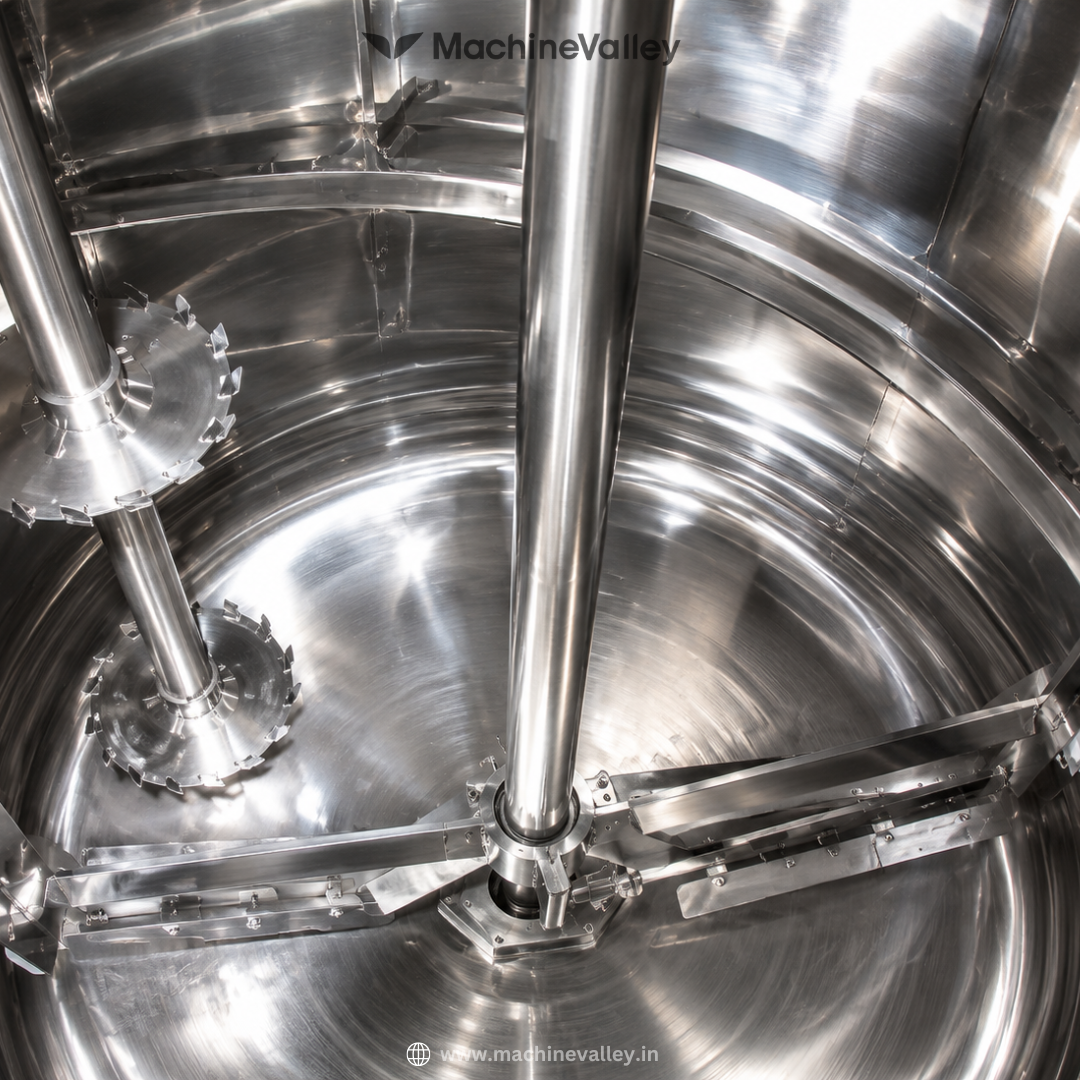

MVD2000

2000 Litre Double Shaft Mixing Kettle

Steps up to capacity range, with higher dissolver and scraper power to keep mixing consistent as batch size grows. A common choice for mid-size manufacturers running regular production cycles of emulsion paint, ink, or pigment dispersions.

MVD5000

5000 Litre Double Shaft Mixing Kettle

Production-scale configuration, built for continuous, high-volume operation. Delivers stronger dissolver shear and scraper coverage across a larger vessel, keeping wall buildup and dead zones under control even at this size.
