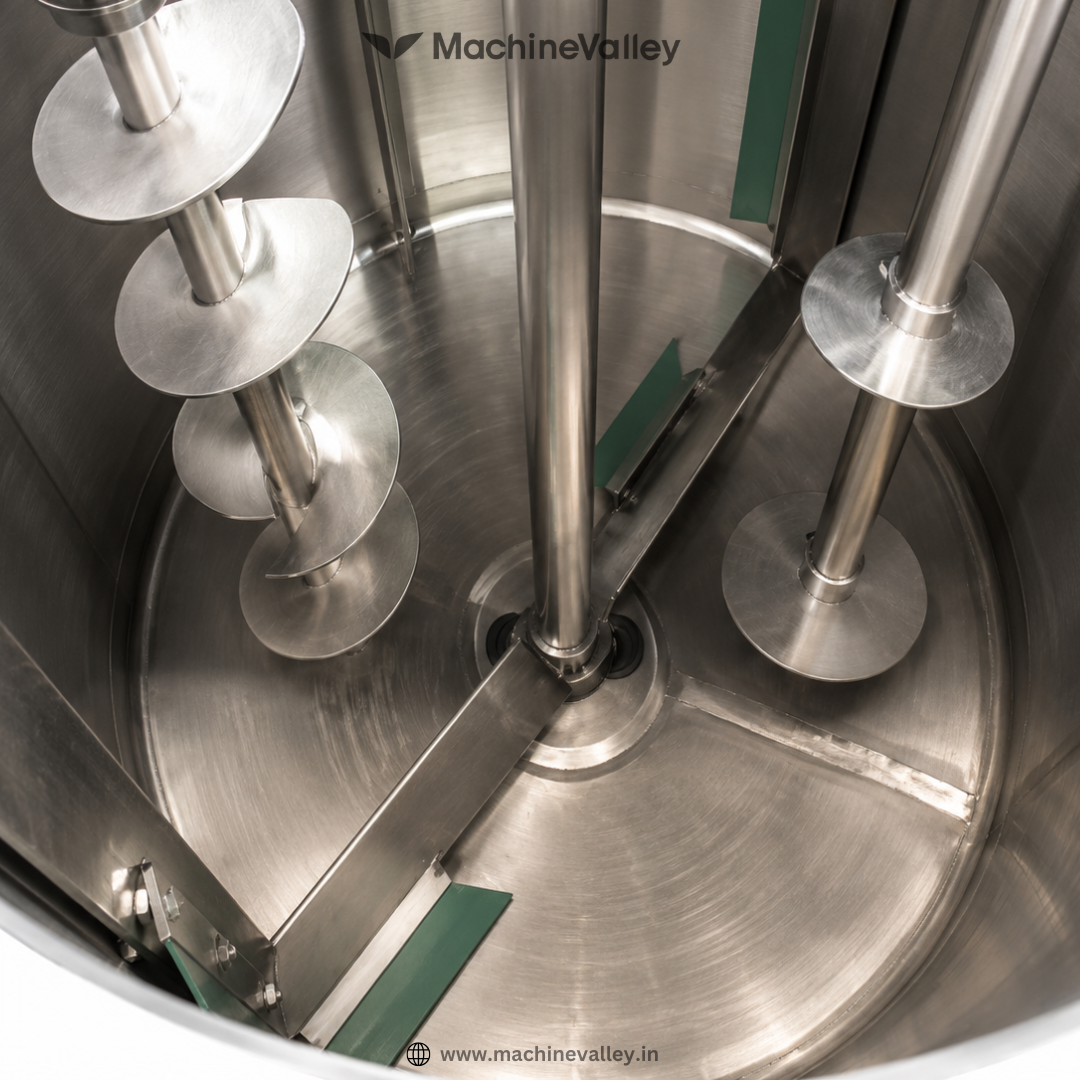

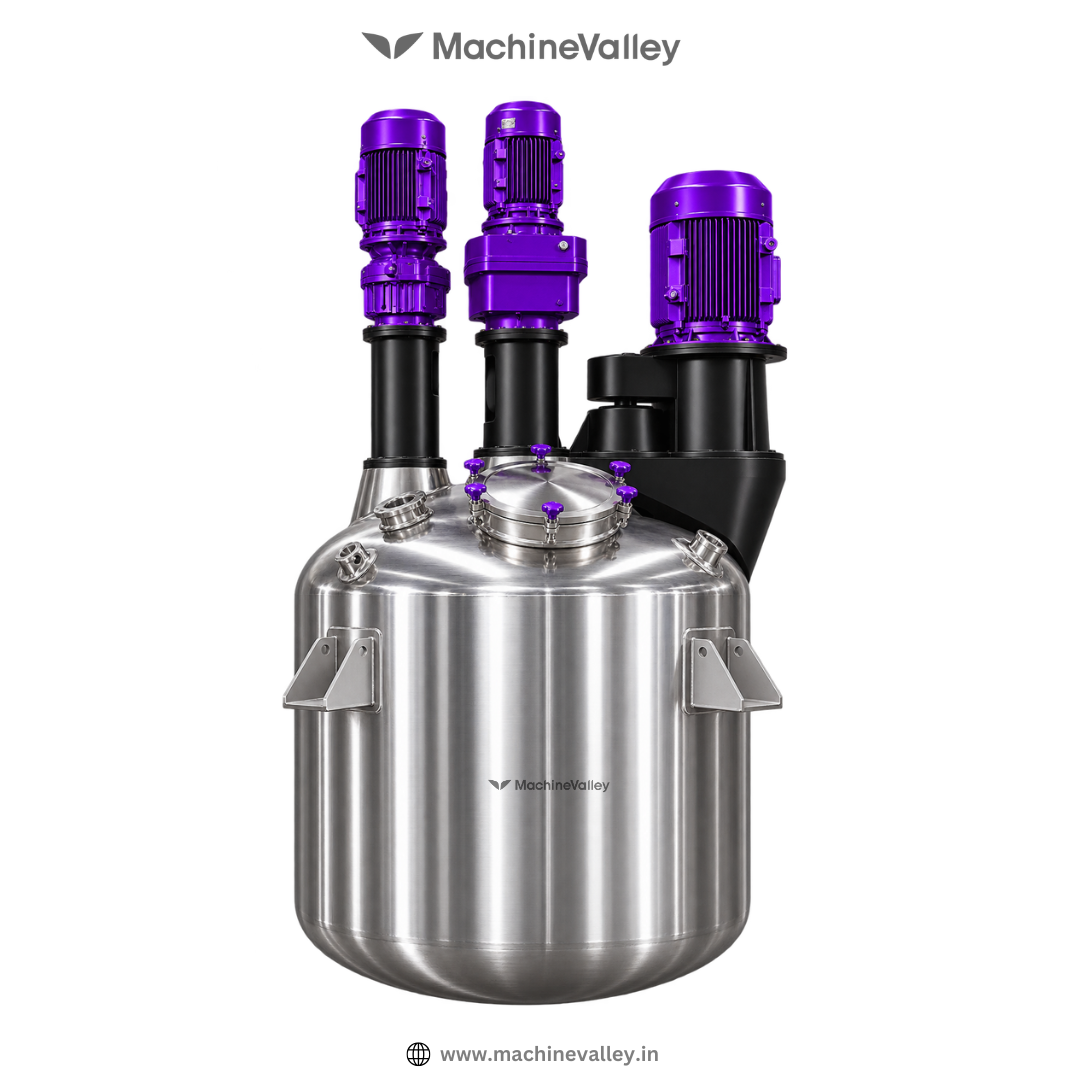

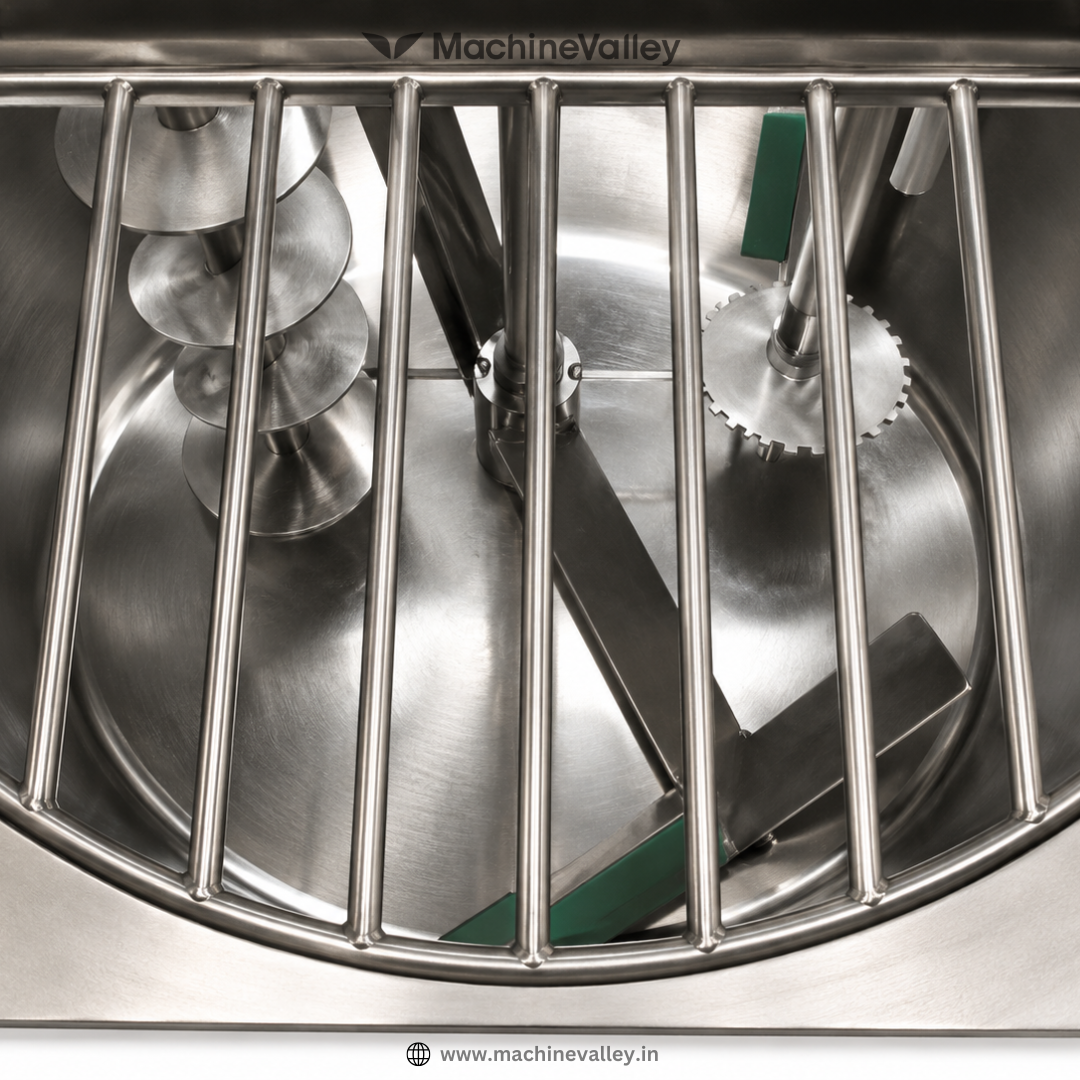

MachineValley Triple Shaft Mixing Reactor runs on three separate motors. An anchor scraper works the vessel walls and bottom continuously, so nothing builds up and heat transfers evenly through the batch. A high-speed disperser handles the actual breakdown of clumps, agglomerates, and pigment that hasn't wetted out yet. The third shaft is the one you pick based on what you're mixing: swap it out for a screw, a butterfly blade, or an emulsifier depending on the formulation.

The third shaft is available in four configurations: a screw for axial flow and bottom-to-top circulation, a butterfly-type blade for gentle folding action, an emulsifier for fine particle reduction and stable emulsions, or a multi-layer inclined blade for enhanced radial and axial mixing in taller batches. This modularity means one MachineValley reactor platform can be specified precisely for adhesives, sealants, printing pastes, inks, pigments, putty, or coatings.

Available across eight model sizes from 1000L to 12000L usable volume, MachineValley Triple Shaft Mixing Reactor scales from pilot/small-batch production up to large SC production lines, with dissolver, third-shaft, and scraper motors sized proportionally at each capacity. Every unit carries ATEX, CE, and ISO certification, making it suitable for flammable or solvent-based formulations in regulated manufacturing environments, backed by MachineValley's engineering and after-sales support.
