MachineValley Dual Shaft High Viscosity Mixer/Disperser handles the stuff that fights back: thick, viscous material that ordinary mixers struggle to move. Hydraulic lift and VFD speed control give operators the range to work through paints, adhesives, sealants, and pharmaceutical formulations without losing consistency batch to batch.
| TSD WITH HIGH-VISCOSITY | TSD-0.5 | TSD-1 | TSD-1.5 | TSD-2 |
|---|---|---|---|---|
| WORKING CAPACITY | 500 LTR | 1000 LTR | 1500 LTR | 2000 LTR |
| HIGH-SPEED MOTOR | 5HP | 10HP | 15HP | 25/30HP |
| HIGH-SPEED MOTOR (RPM) | 0~1440 | 0~1440 | 0~1440 | 0~1440 |
| SHAFT DIAMETER | 50MM | 55MM | 65/70MM | 80MM |
| BLADE DIAMETER | 80MM | 200MM | 250MM | 300MM |
| SLOW-SPEED MOTOR | 5HP | 7.5HP | 10HP | 10HP |
| SLOW-SPEED MOTOR (RPM) | 0~1440 | 0~1440 | 0~1440 | 0~1440 |
| SHAFT DIAMETER | 55MM | 65MM | 75MM | 85MM |
| BLADE DIAMETER | 120MM | 150MM | 180MM | 200MM |
| GEAR BOX - 4” CENTRE | (RATIO) 15:1 | (RATIO) 15:1 | (RATIO) 15:1 | (RATIO) 15:1 |
| BLADE TYPE | SCRAPPER | SCRAPPER | SCRAPPER | SCRAPPER |
| HYDRAULIC MOTOR | 1HP | 1HP | 2HP | 2HP |

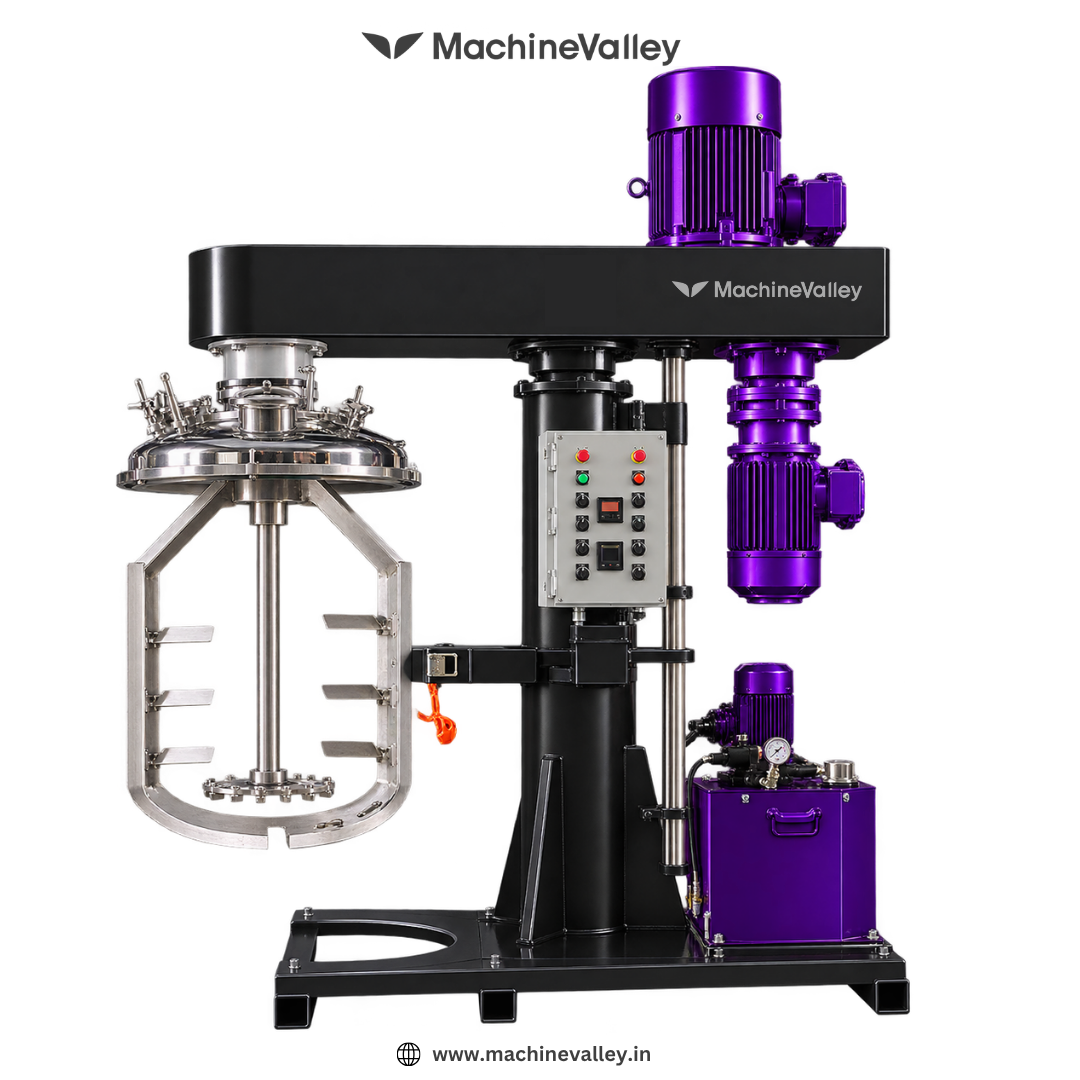

500 Liter High Viscosity Disperser
Compact yet powerful, MachineValley's 500L High Viscosity Disperser handles thick formulations with hydraulic lifting and precise VFD speed control.

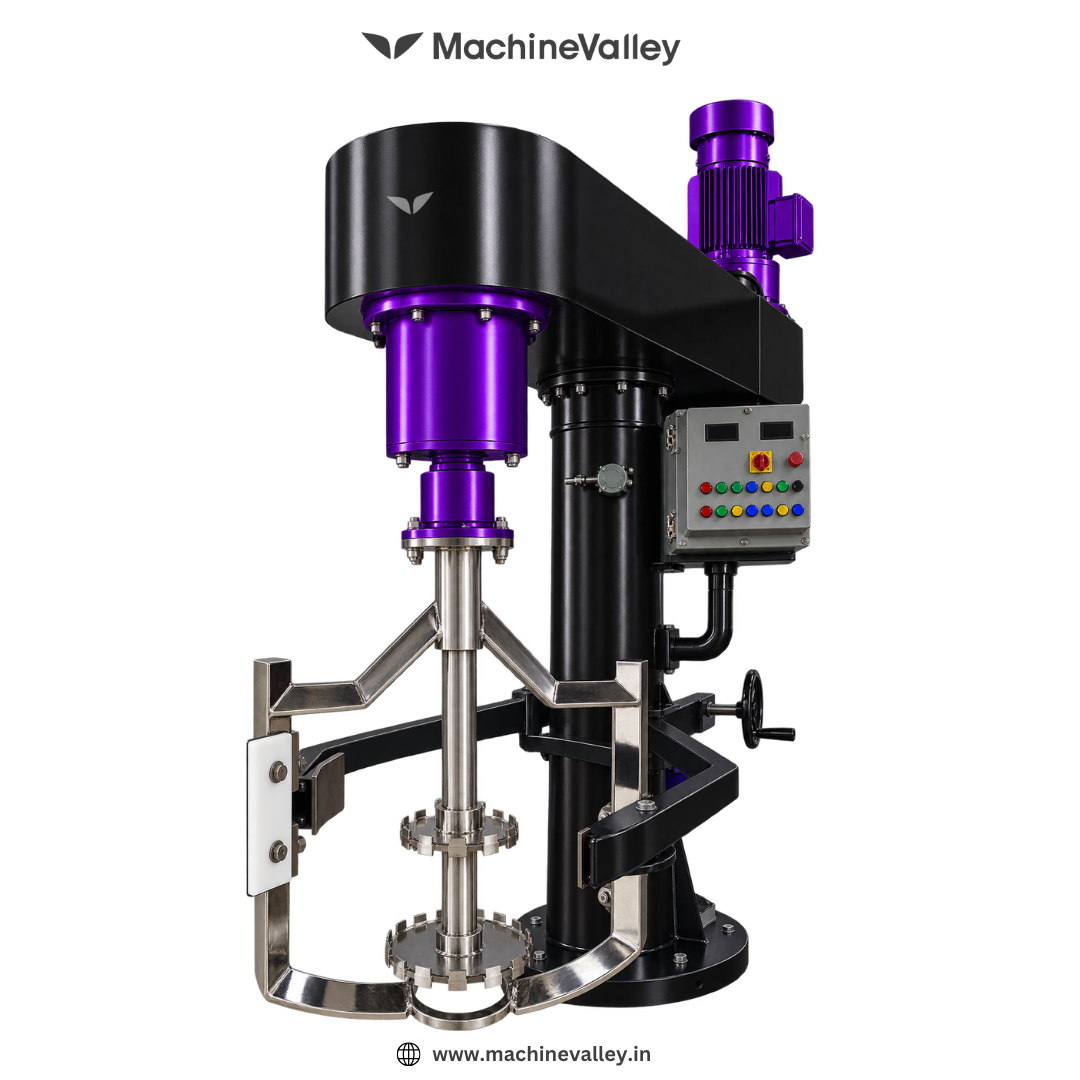

1000 Liter High Viscosity Mixer
Built for mid-scale batches, this 1000L High Viscosity Mixer combines dual-shaft blending with hydraulic lift for consistent, efficient processing.

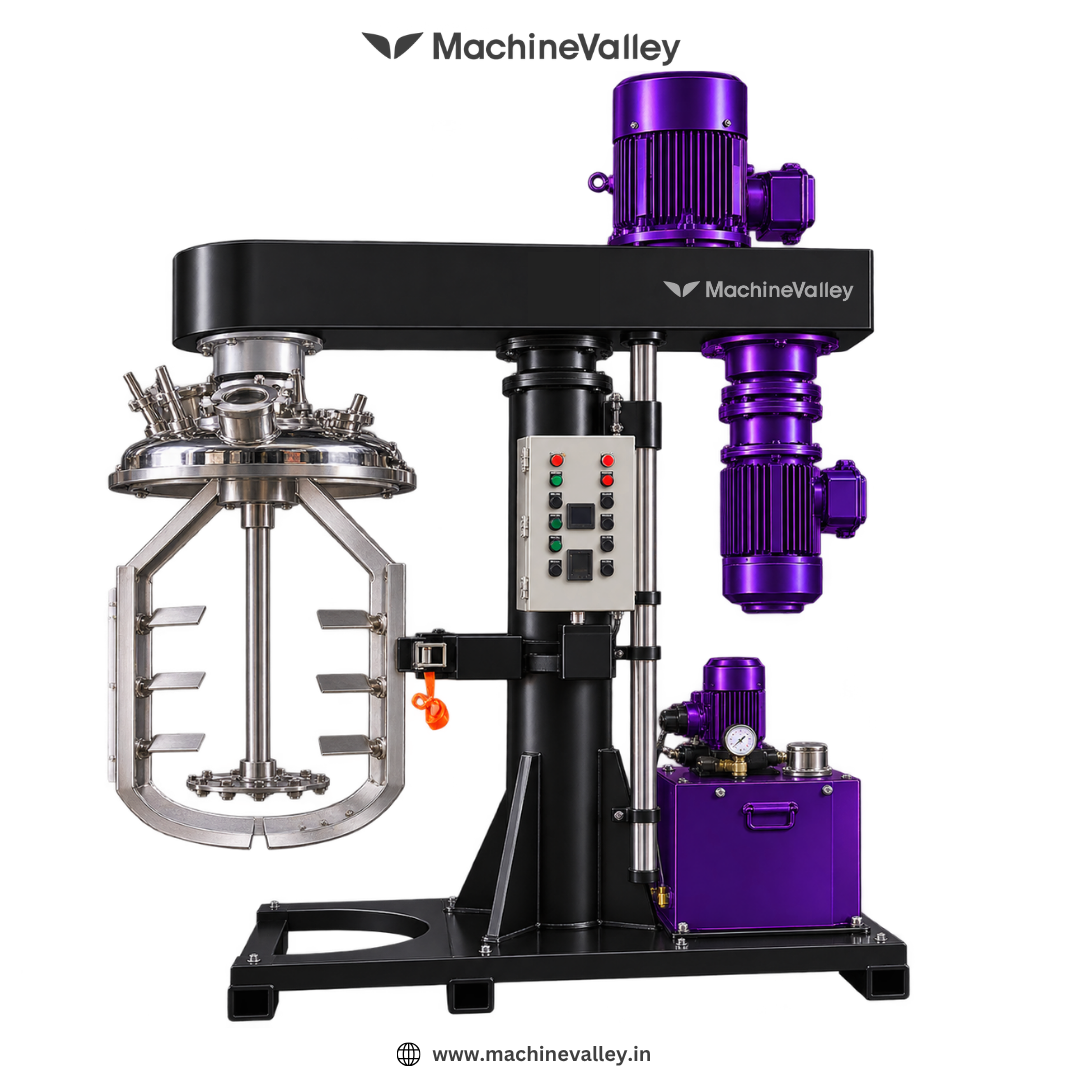

1500 Liter High Viscosity Disperser
MachineValley's 1500L High Viscosity Disperser delivers robust mixing of dense materials, backed by secure clamping and VFD-driven speed control.

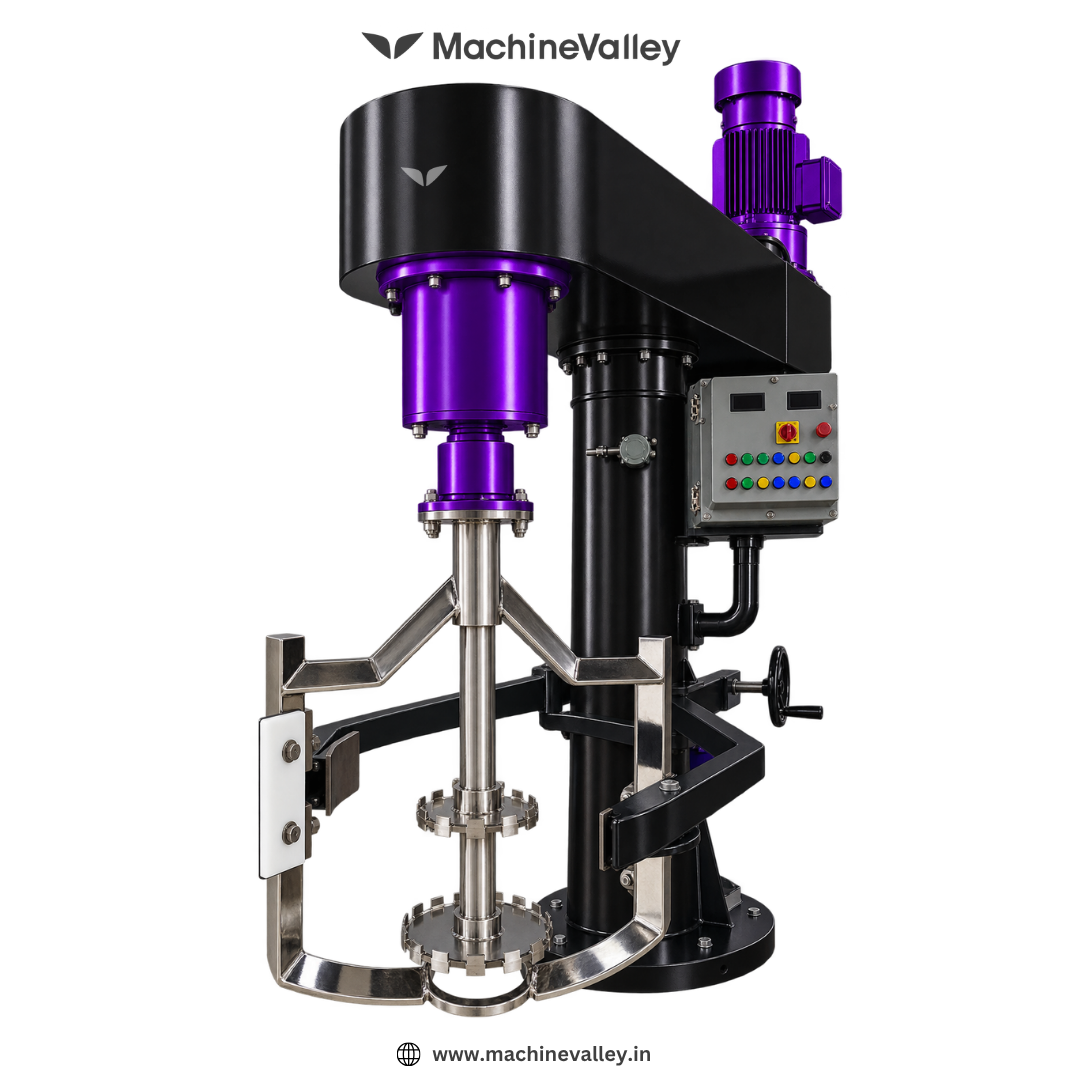

2000 Liter High Viscosity Mixer
Engineered for large-volume output, this 2000L High Viscosity Mixer offers powerful dual-shaft stirring and reliable hydraulic tank handling.
