Vertical Bead Mill Machine

Highlights

Continuous-Type Single-pass Grinding Process
Grinds to Sub-micron, Nanometer Sizes
Jacketed Chamber for Temperature Control

Chamber Capacities: from 10L to 50L
AODD Pump for Efficient Material Transfer
Motor Capacities: from 10 HP to 60 HP

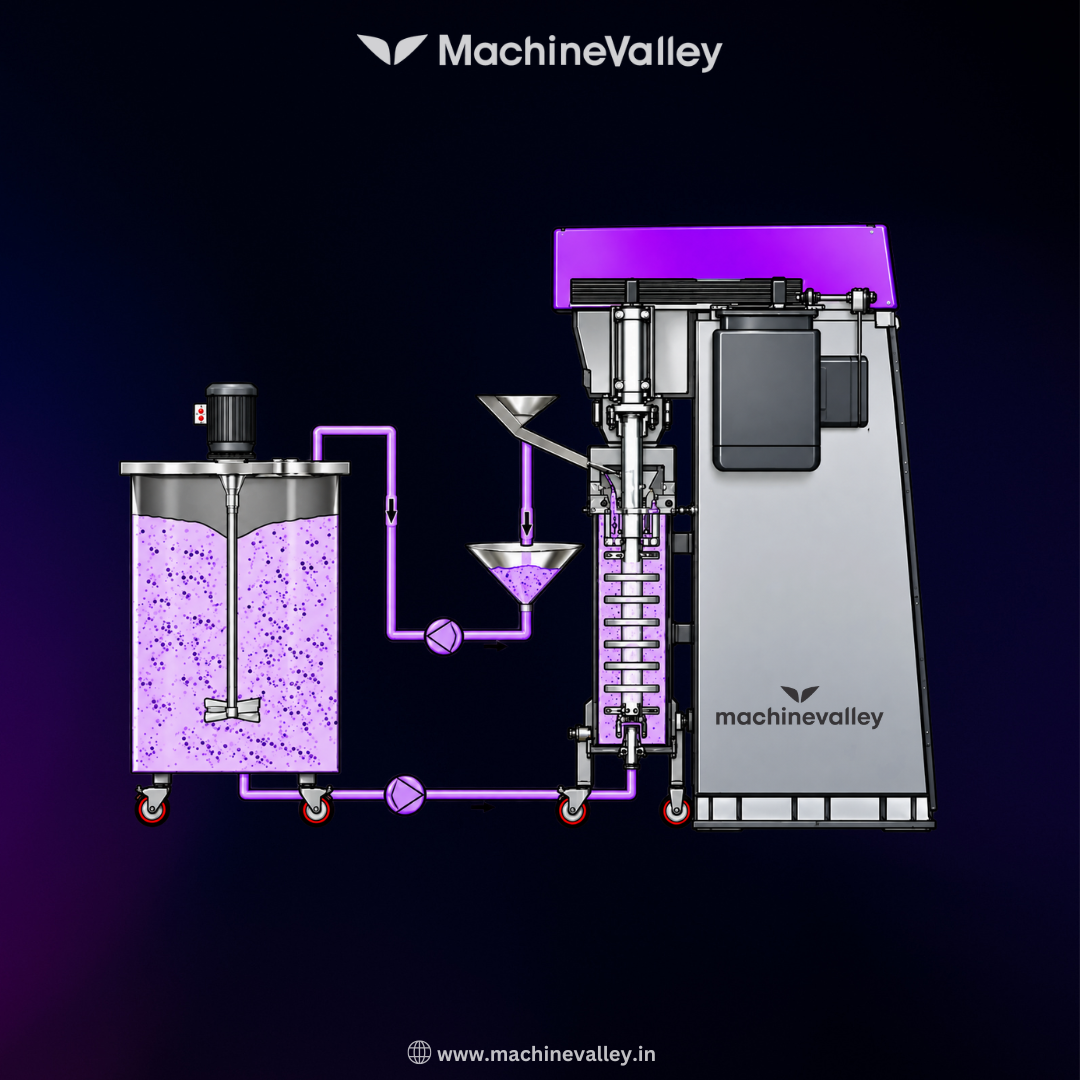

Vertical Bead Mill grinds and disperses pigments, fillers, and other solids down to sub-micron and even nanometer sizes, using ceramic, glass, or metal beads inside the chamber. It handles wet grinding and dispersion in one pass that used across paints, inks, coatings, and chemical processing.

Major Benefits

High-Speed Operation for Faster Processing
Handles a Wide Range of Viscosities
Enhanced Product Quality and Performance
Customizable Design for Specific Needs
Easy Maintenance and Cleaning
Reduced Processing Time, Higher Productivity

Major Feature

SS-304 Construction on All Wetted Parts
Jacketed Chamber for Temperature Control
Gap Separator Mechanism at Outlet Material
Motor Options from ABB, CG, or BB/BBL
FENNER Pulley-Driven Mechanism
AODD Pump for Material Transfer

Technical Information

Specification	TVM-10	TVM-15	TVM-25	TVM-30	TVM-50
Motor Power	10HP	15HP	25HP	30HP	50HP
Motor RPM	0~1440	0~1440	0~1440	0~1440	0~1440
Flow Rate	1-3 Ltr	2-5 Ltr	3-7 Ltr	4-9 Ltr	7-13 Ltr
Chamber Volume	7 Ltr	14 Ltr	25 Ltr	30Ltr	50 Ltr
Shaft Size	50MM	55MM	60MM	65MM	65MM

Machine Options

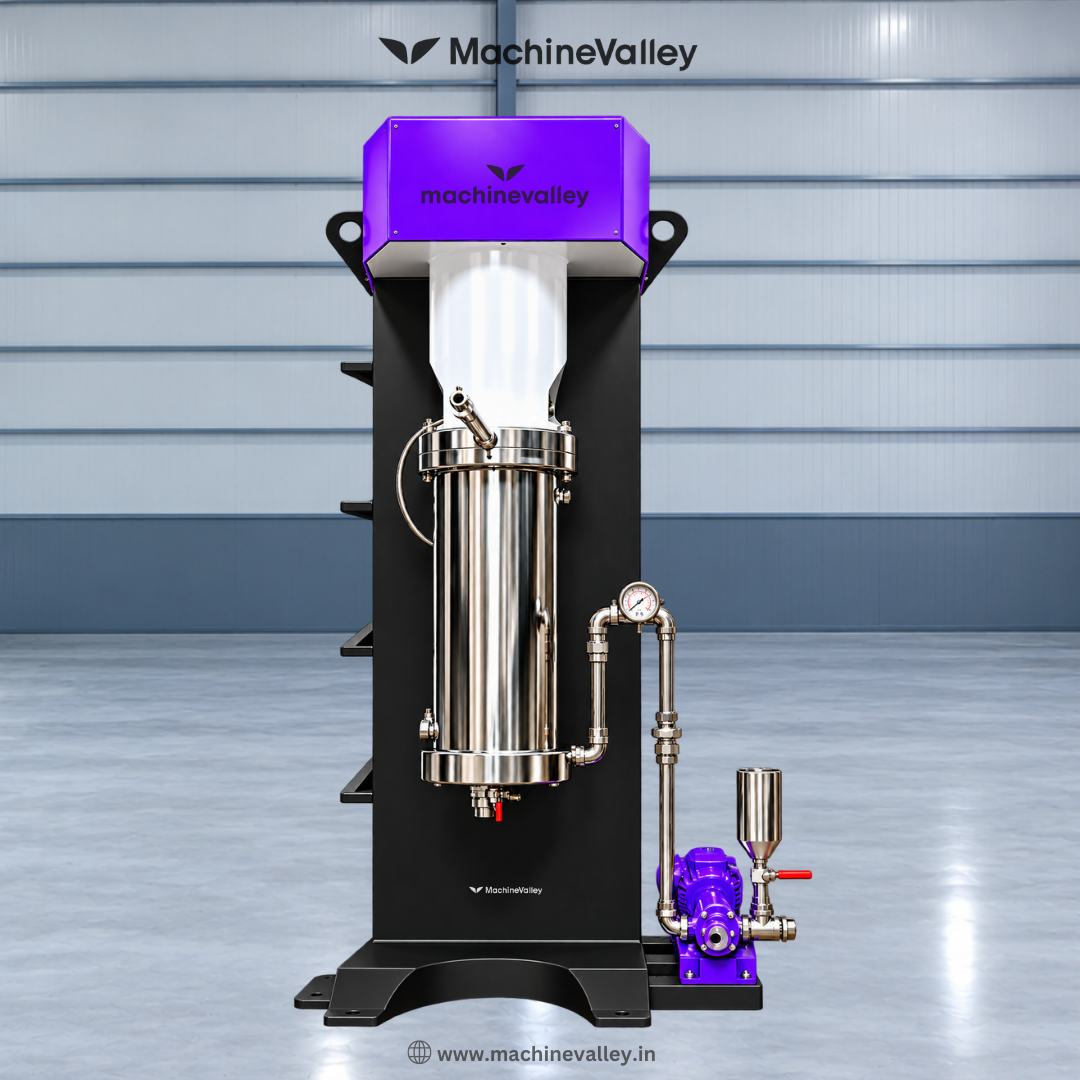

TVM-10

10 Liter Vertical Bead Mill

TVM-10 is a compact, entry-level Vertical Bead Mill with a 10L chamber and 10 HP motor, ideal for lab-scale and pilot-batch grinding trials.

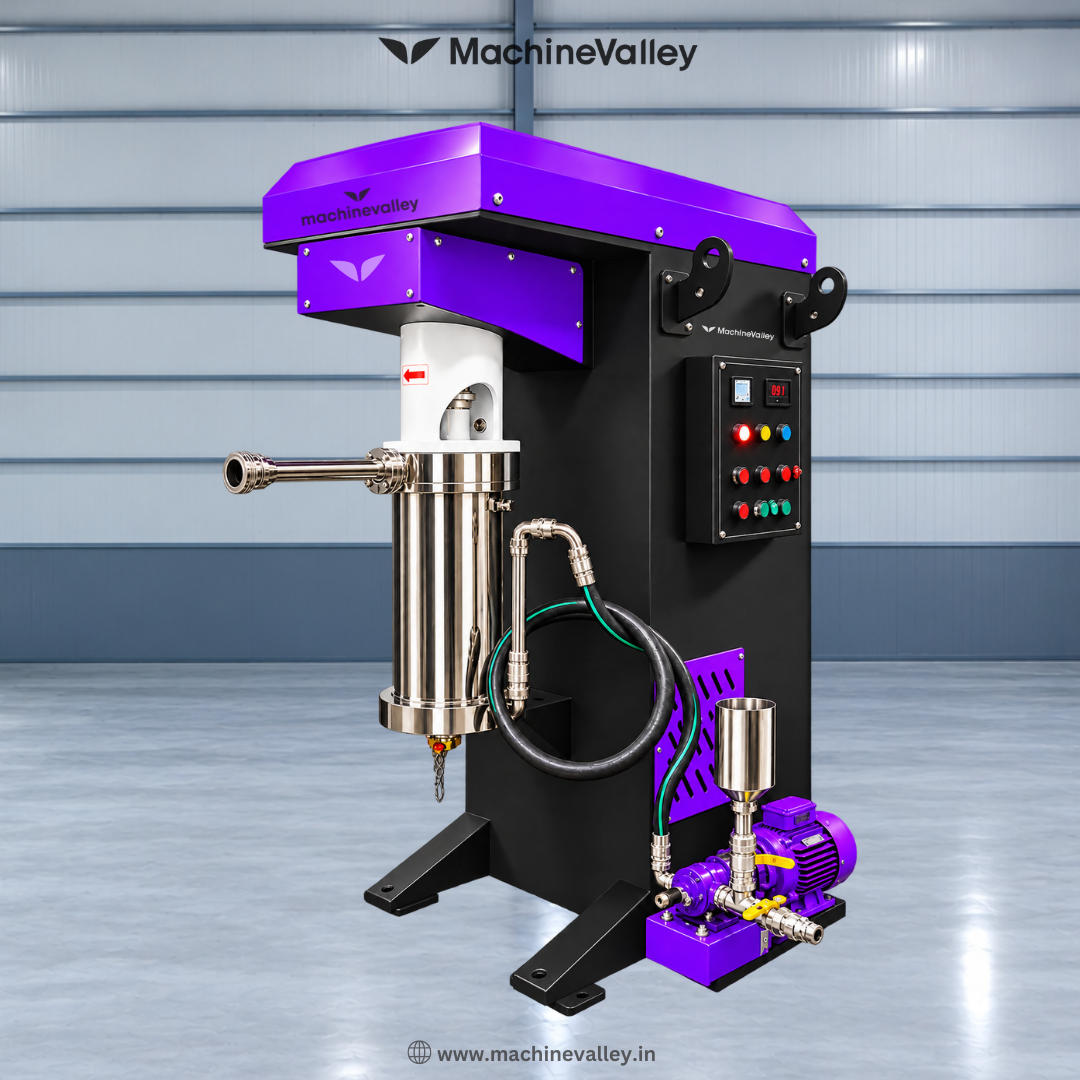

TVM-15

15 Liter Vertical Bead Mill

TVM-15 features a 15L chamber, 15 HP motor, and FENNER pulley drive, delivering consistent 2- 5 L output for small to mid-size production batches.

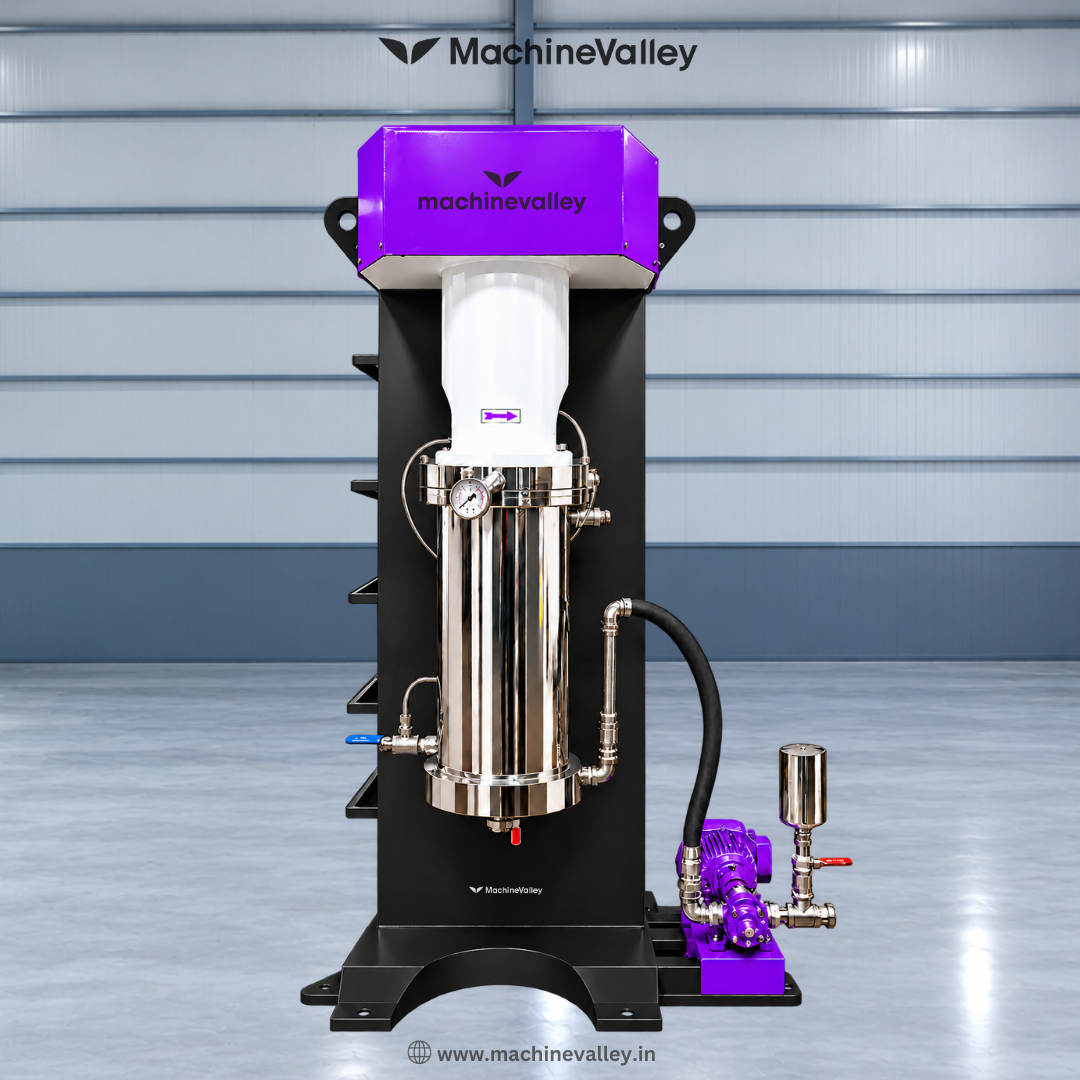

TVM-25

25 Liter Vertical Bead Mill

TVM-25 offers a 25L chamber and a 25HP motor with a heavier impeller set, providing higher throughput of 2-6 Ltr for mid-scale industrial batches.

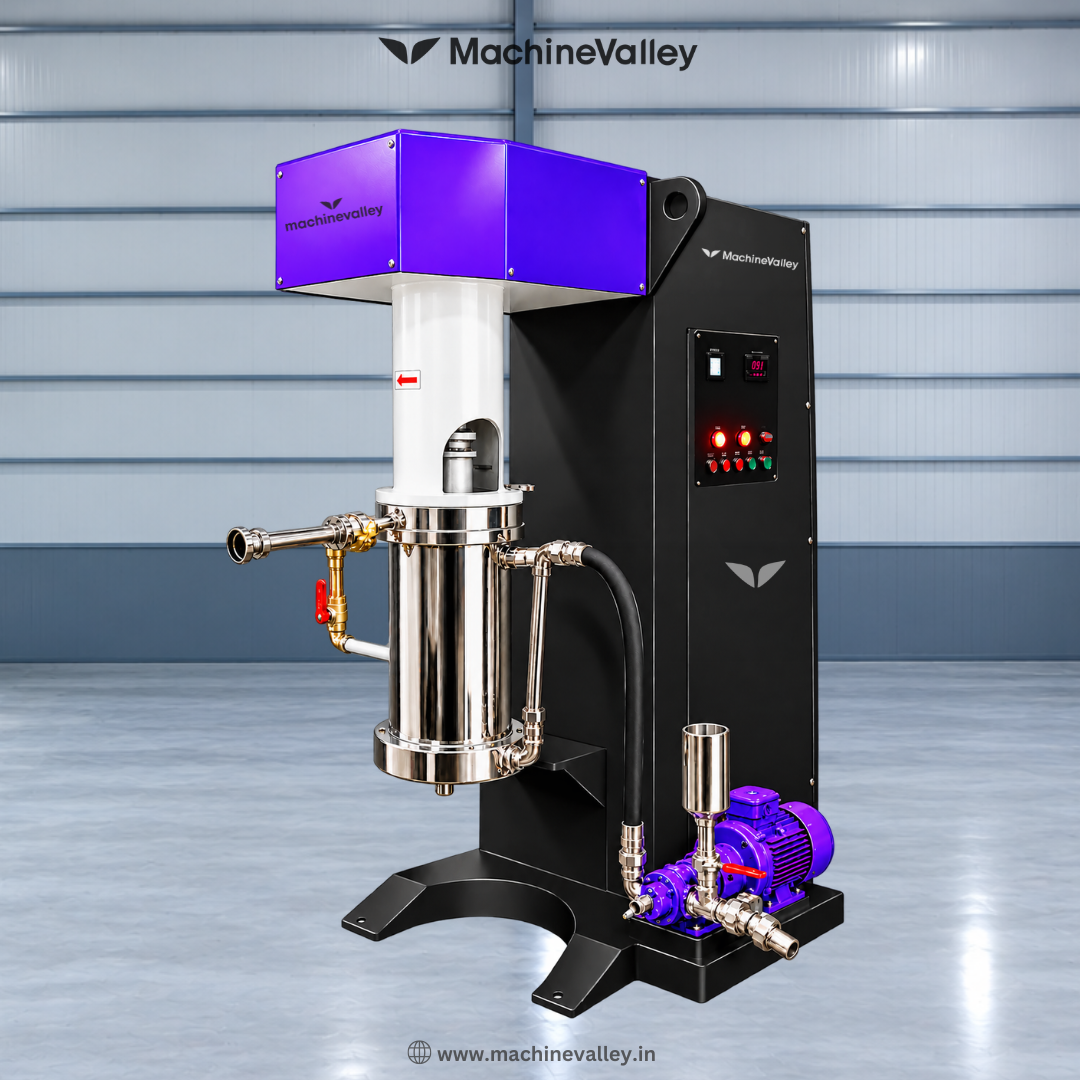

TVM-30

30 Liter Vertical Bead Mill

TVM-30 is the flagship model, built with a 30 HP motor, dynamic gap separator, and AODD pump for continuous, high-volume industrial production at 3-7 Ltr output.

Application & Industry

Paints & Coatings
Printing Inks, Pigments & Dyes
Cosmetics & Personal Care
Agrochemicals
Pharmaceuticals
Specialty Chemicals

Customization Options

Chamber Capacity: Custom sizes 10-50L range
Material of Construction: SS-304 or SS-316
Motor Make & Power: ABB, CG, or BBL motors
Gap Separator Type: Standard or Dynamic Gap Separator
Drive Mechanism: Direct-coupled or FENNER Pulley Drive
Jacket Design: Cooling or Heating jacket, custom thickness
Material Transfer: Optional AODD pump for automated transfer
Motor Type: Flameproof for hazardous-area site
Bead Media: Ceramic, Glass, or Metal Beads

FAQ

Outlet allow bead retention during discharge, and the chamber can be flushed with a compatible solvent or water (depending on the product) between batches. Full bead and chamber cleaning is done periodically per maintenance schedule.

TVM-10 handles both. While it's the smallest chamber size in the line, it's built for production-scale grinding, not just lab or pilot testing.

Vertical mills suit smaller batch volumes and easier bead loading/unloading; horizontal mills are better for high-volume, continuous production.

Bead choice depends on target particle size and product hardness. Finer beads (0.3–0.8mm) suit nanometer targets; larger beads (1–2mm) work for coarser dispersion. Ceramic (zirconia/zirconium silicate) beads are common for most paints and inks; glass beads suit lower-cost, less abrasive applications.
