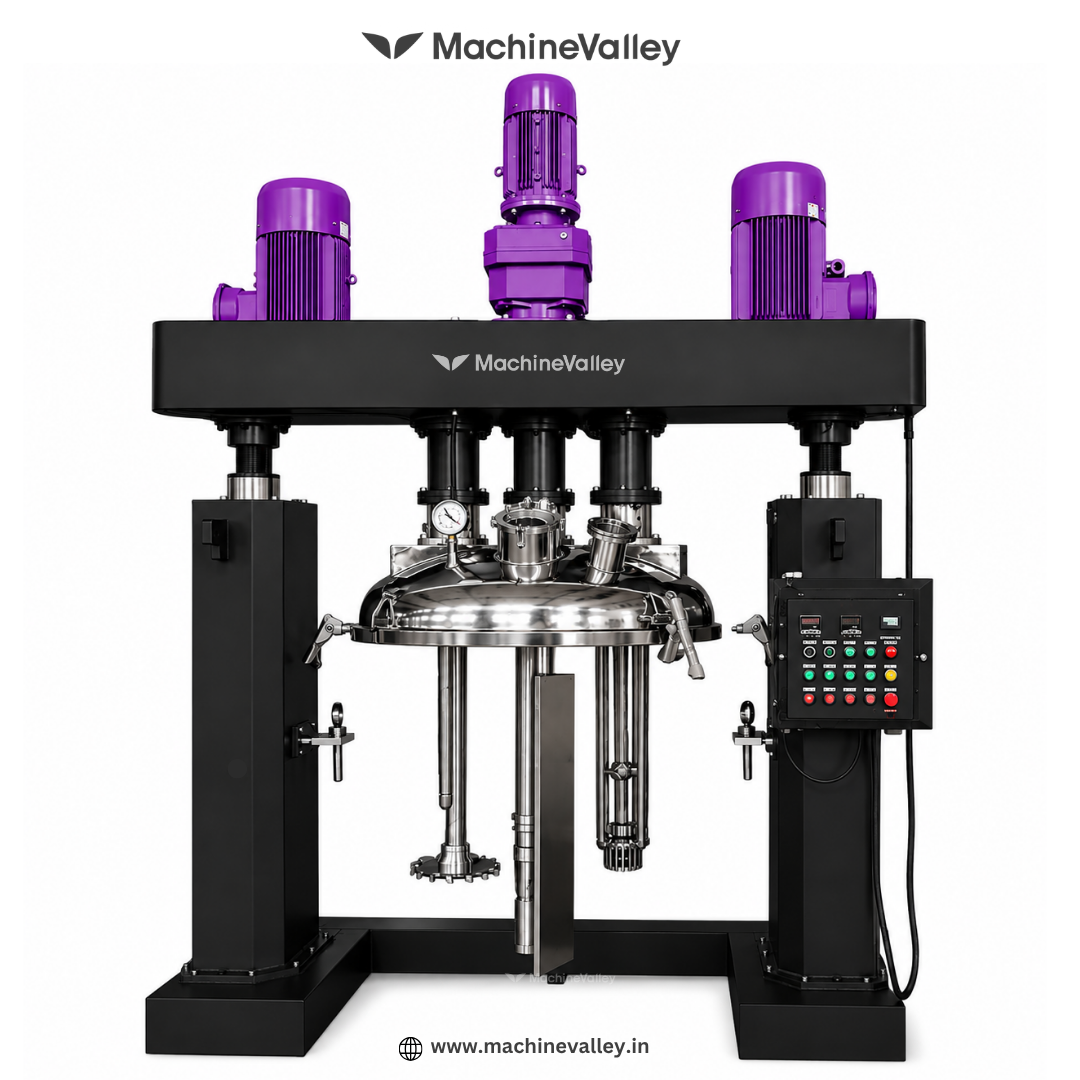

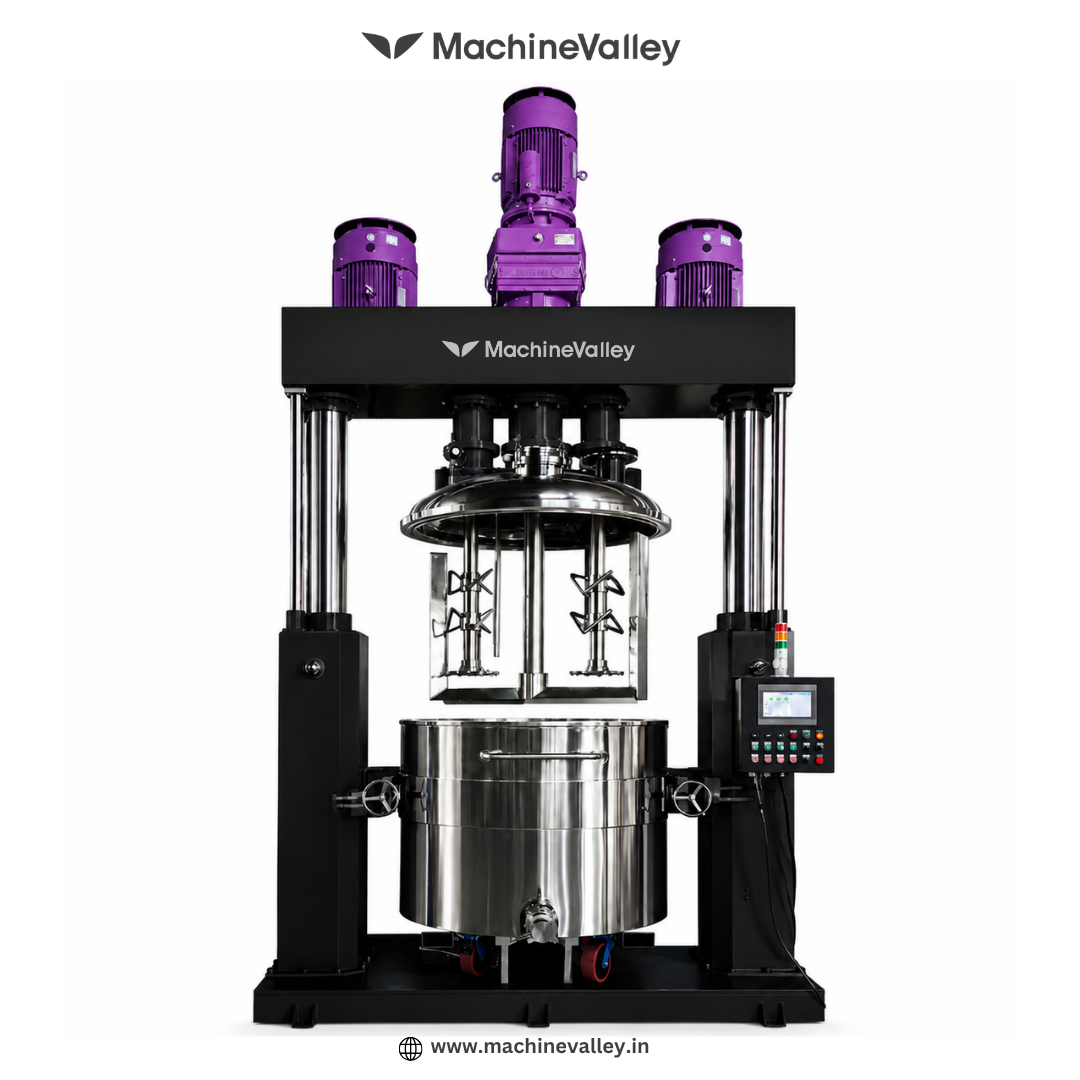

MachineValley's Multi-Shaft Mixer with Hydraulic Lifting handles anchor scraping, high-speed dispersion, and a configurable third shaft in one unit for versatile mixing work.
| Machine Model | Dissolver (kW) | Dissolver Speed (rpm) | Helix (kW) | Helix Speed (rpm) | Scraper (kW) | Scraper Speed (rpm) | Usable Volume (max) |
|---|---|---|---|---|---|---|---|
| MVTS1000 | 22 | 0-1450 | 4 | 0-180 | 5.5 | 22 | 800L |
| MVTS2000 | 37 | 0-1450 | 5.5 | 0-180 | 7.5 | 22 | 1600L |
| MVTS3000 | 45 | 0-1450 | 7.5 | 0-170 | 11 | 22 | 2300L |
| MVTS5000 | 55 | 0-1450 | 11 | 0-170 | 15 | 18 | 4000L |
| MVTS6000 | 75 | 0-960 | 15 | 0-120 | 18.5 | 18 | 4600L |
| MVTS8000 | 90 | 0-960 | 18.5 | 0-120 | 22 | 17 | 6200L |
| MVTS10000 | 110 | 0-960 | 22 | 0-100 | 30 | 17 | 7800L |
| MVTS15000 | 132 | 0-960 | 30 | 0-100 | 37 | 17 | 12000L |

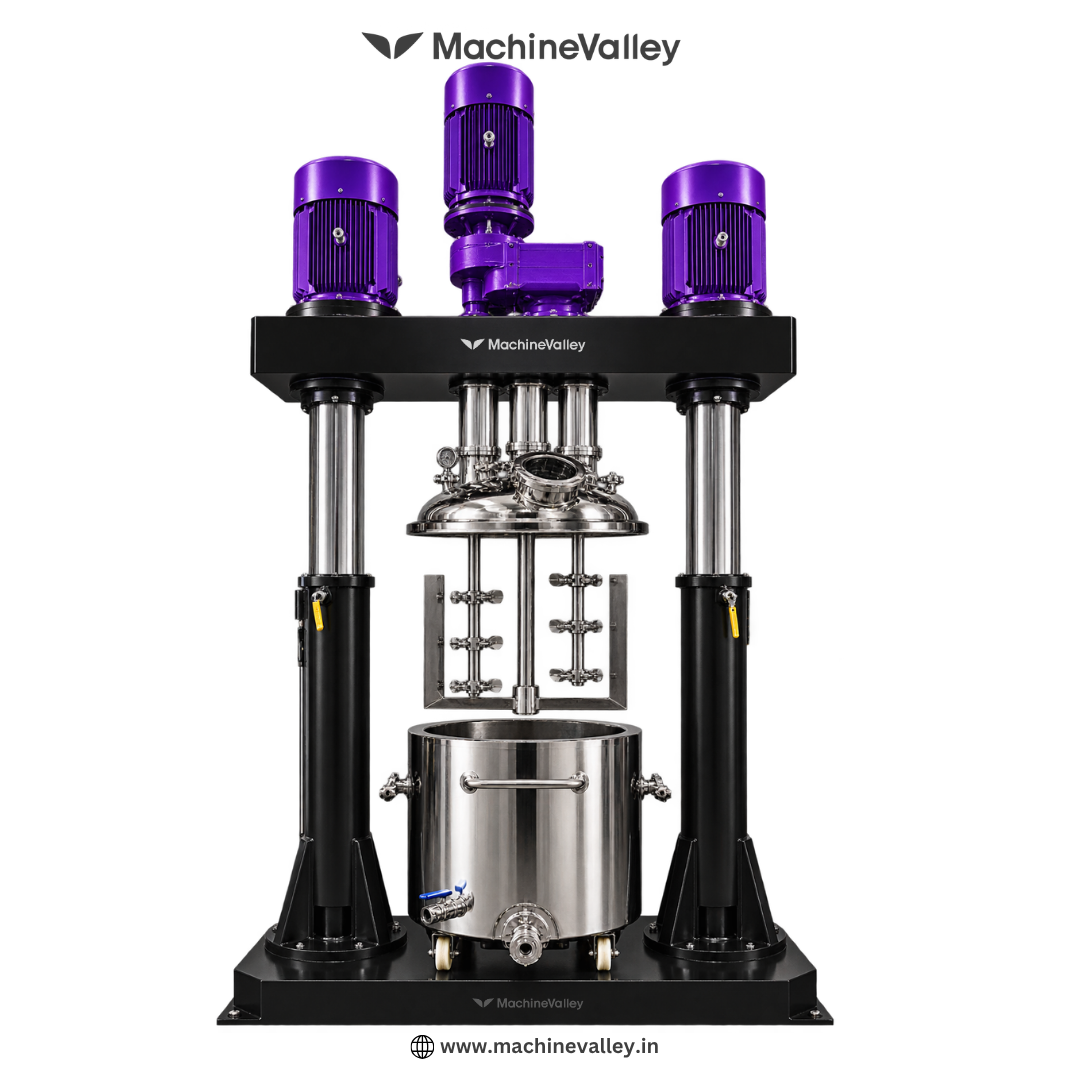

500 Liter Multi Shaft Mixer
The 500L version is sized for smaller runs — R&D labs, pilot batches, that kind of work but keeps the same anchor-plus-disperser setup as the bigger models.

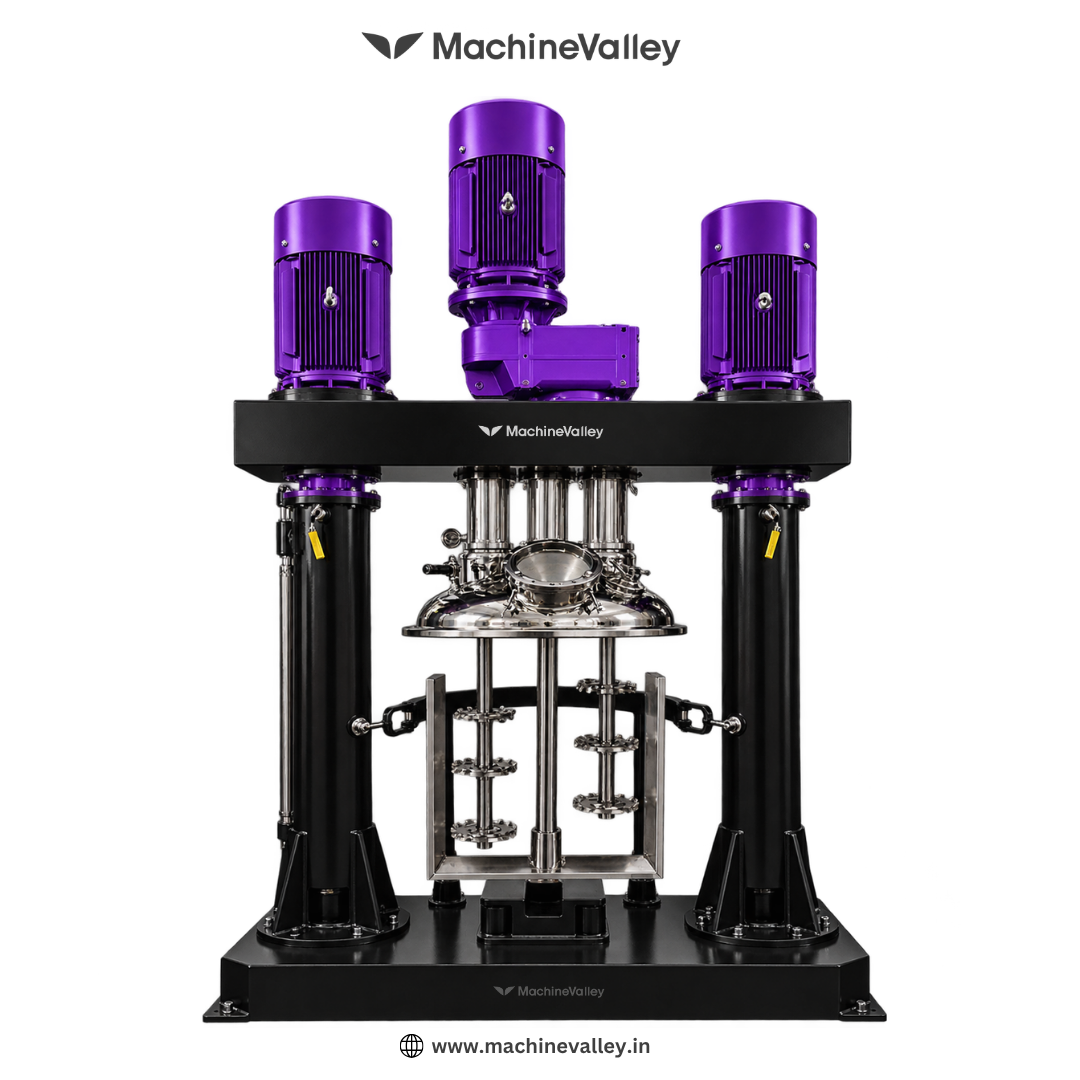

1000 Liter Multi Shaft Mixer
MachineValley's 1000L Multi Shaft Mixer runs anchor scraping alongside high-speed dispersion, a solid fit for steady, mid-volume production.
1500 Liter Multi Shaft Mixer
At 1500L, this Multi Shaft Mixer gives you more headroom for bulk batches, with each shaft still running at its own speed.
2000 Liter Multi Shaft Mixer
The 2000L Multi Shaft Mixer is the largest in the line, built to handle heavier loads without losing the independent shaft control of the smaller models.
